Series B – Cross Tube Style 3000 PSI
Product Details
Tube: ST 52.3 – Precision Honed for maximum seal performance and long life
Rod: Ground / Polished & Hard Chrome Plated for extended cylinder life
Rod Seal: Polyurethane Double Lip Design for lower friction / increased stability and positive sealing
Wiper: Polyurethane – Pressure Relief Ribs prevent pressure trapping
Piston Seal: Tough 92 A Polyurethane 775 Style face seal
- Providing excellent wear resistance
- High Extrusion resistance
- Tolerant to contamination
- Pre-loaded to ensure low pressure capabilities
- Suitable for single acting operation
Delavan Series B cylinders come standard with wear rings to protect from metal to metal contact caused by side loading or misalignment. Wear rings provide a consistent clearance gap for seals ensuring predictable operation and longer life expectancy.

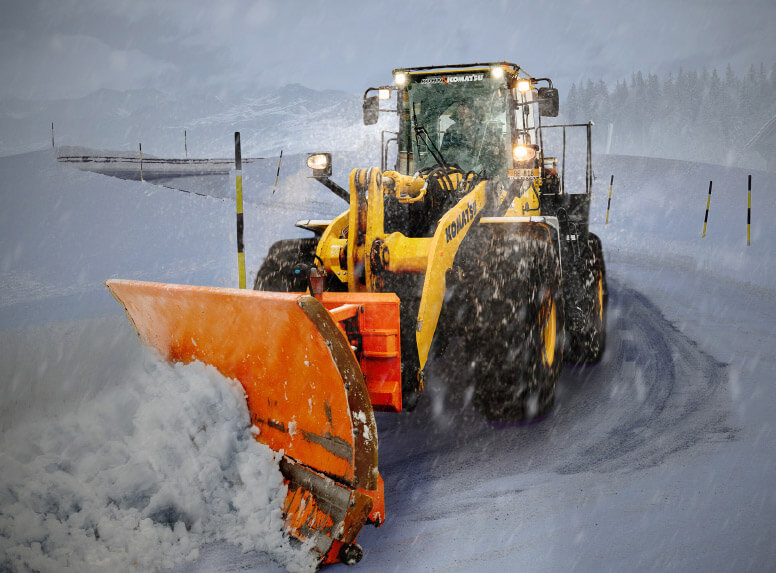

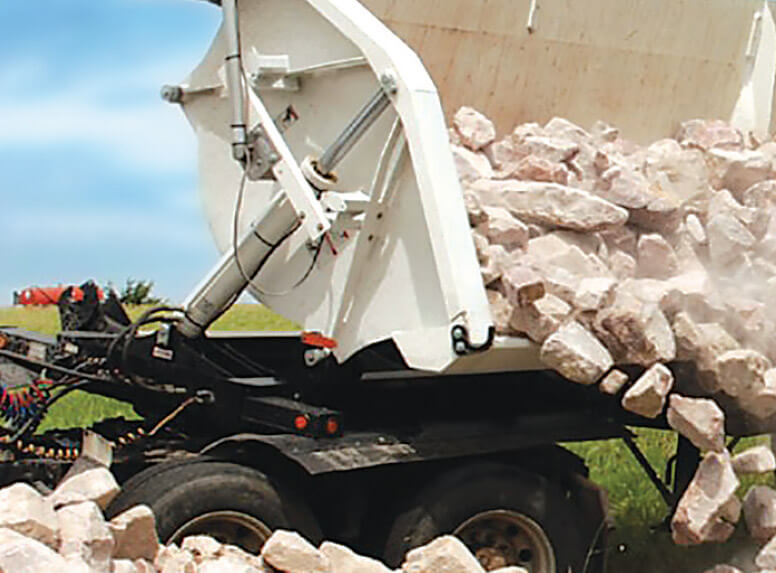

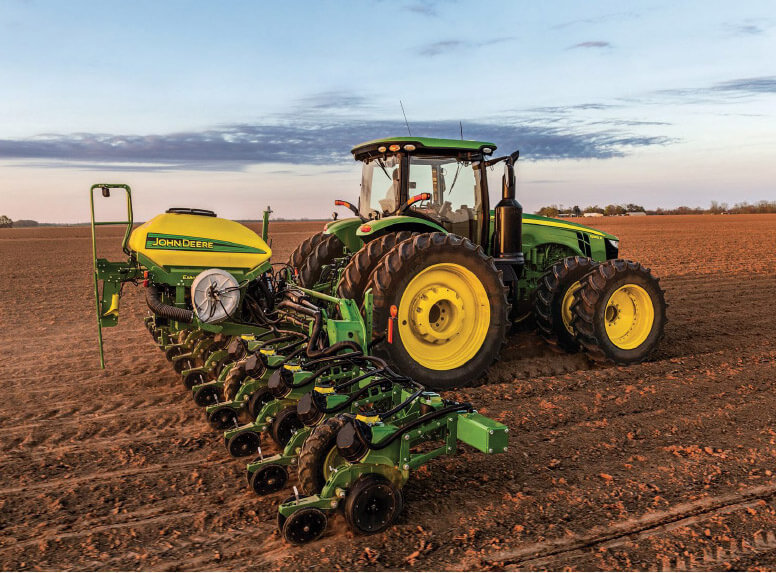

Cross Tube Mounts fit a wide range of agricultural and mobile applications.
Additional Specifications
Series A – Spherical Bearing Dimensions
| BORE | 1.50 | 2.00 | 2.50 | 3.00 | 3.50 | 4.00 | 5.00 |
|---|---|---|---|---|---|---|---|
| A | 8.00 | 8.00 | 8.00 | 8.00 | 10.00 | 10.00 | 11.00 |
| B | 0.19 | 0.19 | 0.19 | 0.19 | 0.19 | 0.25 | 0.31 |
| C | SAE 6 | SAE 8 | SAE 8 | SAE 8 | SAE 8 | SAE 8 | SAE 8 |
| D | 1.00 | 1.25 | 1.50 | 1.50 | 1.75 | 2.00 | 2.50 |
| E | 2.25 | 2.75 | 3.25 | 3.75 | 4.25 | 4.75 | 5.75 |
| G | 2.00 | 2.25 | 2.25 | 2.25 | 2.25 | 2.50 | 3.25 |
| J | 2.88 | 2.50 | 2.25 | 1.88 | 3.19 | 2.75 | 2.96 |
| K | 2.13 | 1.88 | 2.00 | 2.09 | 2.31 | 2.13 | 2.50 |
| M | 0.85 | 0.98 | 1.00 | 1.25 | 1.31 | 1.61 | 1.50 |
| N | 0.63 | 0.75 | 0.75 | 0.75 | 1.00 | 1.13 | 1.25 |
| R | 0.76 | 1.02 | 1.02 | 1.02 | 1.26 | 1.52 | 1.77 |
| S | 1.25 | 1.50 | 1.50 | 1.50 | 2.00 | 2.25 | 2.50 |
