Series C – Welded Clevis Style 3000 PSI
Product Details
Tube: ST 52.3 – Precision Honed for maximum seal performance and long life
Rod: Ground / Polished & Hard Chrome Plated for extended cylinder life
Rod Seal: Polyurethane Double Lip Design for lower friction / increased stability and positive sealing
Wiper: Polyurethane – Pressure Relief Ribs prevent pressure trapping
Piston Seal: Tough 92 A Polyurethane 775 Style face seal
- Providing excellent wear resistance
- High Extrusion resistance
- Tolerant to contamination
- Pre-loaded to ensure low pressure capabilities
- Suitable for single acting operation
Delavan Series C cylinders come standard with wear rings to protect from metal to metal contact caused by side loading or misalignment. Wear rings provide a consistent clearance gap for seals ensuring predictable operation and longer life expectancy.

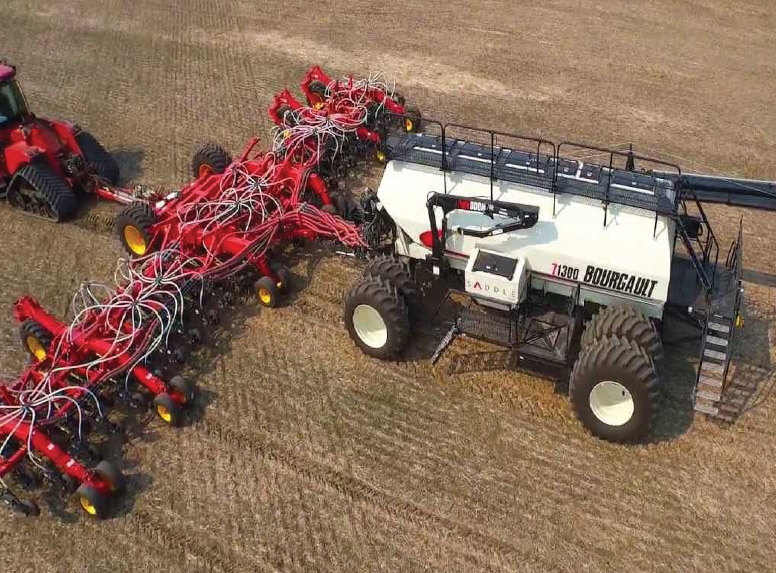

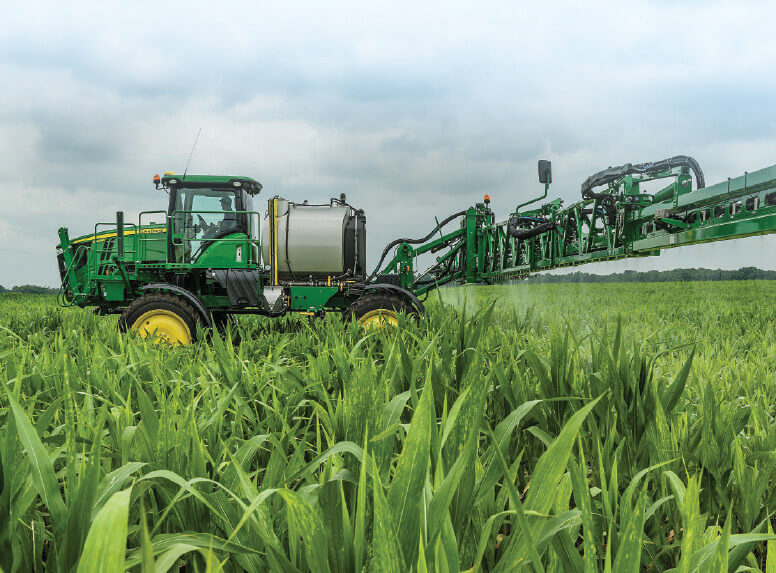

Welded Clevis Mounts fit a wide range of agricultural and mobile applications.mounting misalignment is common.
Additional Specifications
Series A – Spherical Bearing Dimensions
| BORE | 1.50 | 2.00 | 2.50 | 3.00 | 3.50 | 4.00 | 5.00 |
|---|---|---|---|---|---|---|---|
| A | 10.25 | 10.25 | 10.25 | 10.25 | 10.25 | 10.25 | 12.25 |
| B | 0.19 | 0.19 | 0.19 | 0.19 | 0.19 | 0.25 | 0.31 |
| C | SAE 6 | SAE 8 | SAE 8 | SAE 8 | SAE 8 | SAE 8 | SAE 8 |
| D | 1.00 | 1.25 | 1.50 | 1.50 | 1.75 | 2.00 | 2.50 |
| E | 2.07 | 2.13 | 2.13 | 2.13 | 2.39 | 2.39 | 2.39 |
| G | 2.07 | 2.13 | 2.13 | 2.13 | 2.39 | 2.39 | 2.39 |
| H | 1.13 | 1.14 | 1.14 | 1.14 | 1.13 | 1.13 | 1.13 |
| I | 1.13 | 1.14 | 1.14 | 1.14 | 1.13 | 1.13 | 1.13 |
| J | 1.50 | 2.13 | 2.13 | 2.13 | 2.13 | 2.13 | 2.00 |
| K | 2.13 | 1.88 | 2.00 | 2.09 | 2.31 | 2.13 | 2.50 |
| L | 0.79 | 1.00 | 1.00 | 1.00 | 1.25 | 1.25 | 1.38 |
| M | 0.85 | 1.04 | 1.04 | 1.25 | 1.31 | 1.50 | 1.50 |
| N | 1.50 | 2.00 | 2.00 | 2.37 | 2.13 | 2.13 | 2.00 |
| R | 0.79 | 1.00 | 1.00 | 1.00 | 1.25 | 1.25 | 1.38 |
| S | 0.75 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
