Series D – Threaded Clevis Style 3000 PSI
Product Details
Tube: ST 52.3 – Precision Honed for maximum seal performance and long life
Rod: Ground / Polished & Hard Chrome Plated for extended cylinder life
Threaded Rod Clevis: 80-55-06 Ductile for increased strength and durability
Rod Seal: Polyurethane Double Lip Design for lower friction / increased stability and positive sealing
Wiper: Polyurethane – Pressure Relief Ribs prevent pressure trapping
Piston Seal: Tough 92 A Polyurethane 775 Style face seal
- Providing excellent wear resistance
- High Extrusion resistance
- Tolerant to contamination
- Pre-loaded to ensure low pressure capabilities
- Suitable for single acting operation
Delavan Series D cylinders come standard with wear rings to protect from metal to metal contact caused by side loading or misalignment. Wear rings provide a consistent clearance gap for seals ensuring predictable operation and longer life.

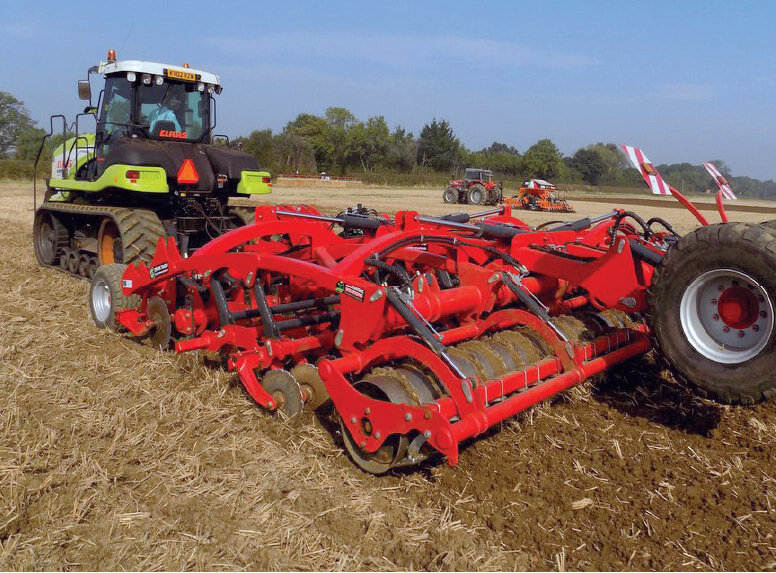

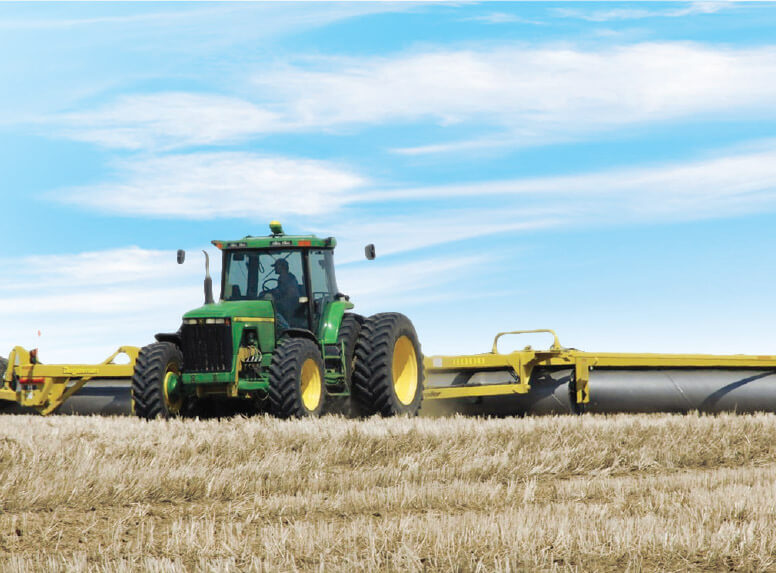

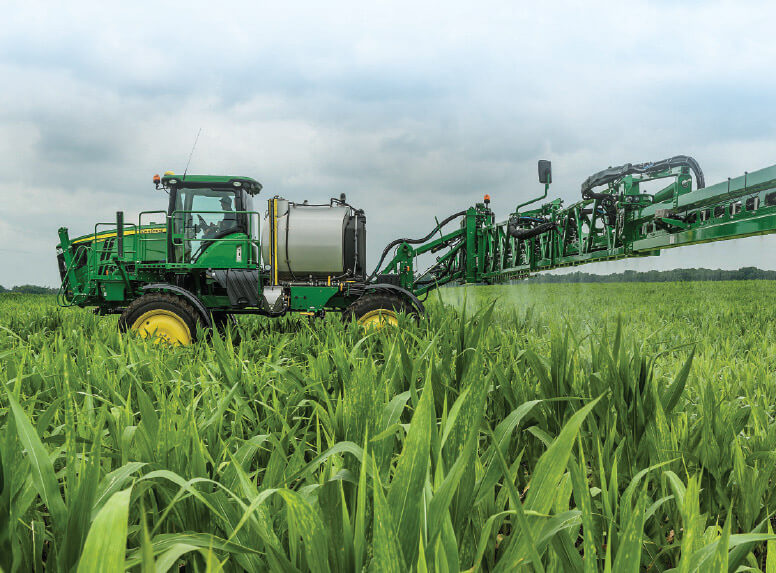

Threaded Clevis Mounts fit a wide range of agricultural and mobile applications and closely interchange with most implement mountings.
Additional Specifications
| BORE | 2.00 | 2.50 | 3.00 | 3.50 | 4.00 | 5.00 |
|---|---|---|---|---|---|---|
| A | 10.25 | 10.25 | 10.25 | 10.25 | 10.25 | 12.25 |
| B | 0.188 | 0.188 | 0.188 | 0.188 | 0.25 | 0.31 |
| C | SAE 8 | SAE 8 | SAE 8 | SAE 8 | SAE 8 | SAE 12 |
| E | 2.165 | 2.386 | 2.386 | 2.75 | 2.75 | 2.39 |
| G | 2.50 | 2.50 | 2.717 | 2.717 | 2.717 | 2.95 |
| H | 1.126 | 1.125 | 1.125 | 1.125 | 1.125 | 1.31 |
| I | 1.165 | 1.165 | 1.165 | 1.125 | 1.165 | 1.31 |
| J | 2.126 | 2.126 | 2.126 | 2.125 | 2.126 | 2.12 |
| M | 2.125 | 1.75 | 1.75 | 1.75 | 3 | 2 |
| Q | 1.125″-12 UNF | 1.125″-12 UNF | 1.25″-12 UNF | 1.25″-12 UNF | 1.25″-12 UNF | 1.5″-12 UNF |
| R | 1 | 1 | 1 | 1 | 1 | 1.25 |
| S | 2 | 2 | 2.25 | 2.5 | 2.5 | 2.75 |
| T | 2 | 2 | 2.264 | 2.264 | 2.264 | 2.75 |
