RollerPro

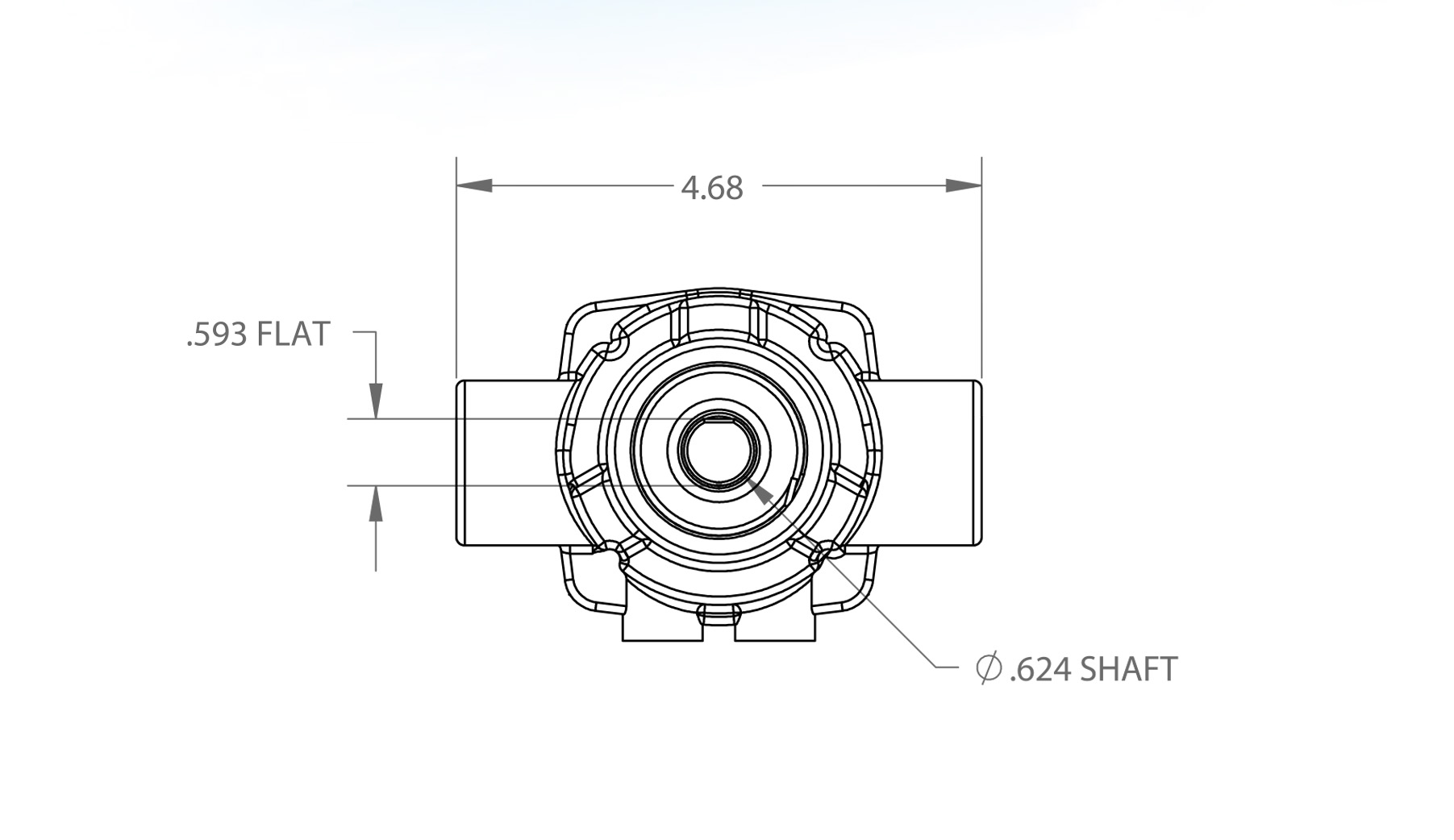

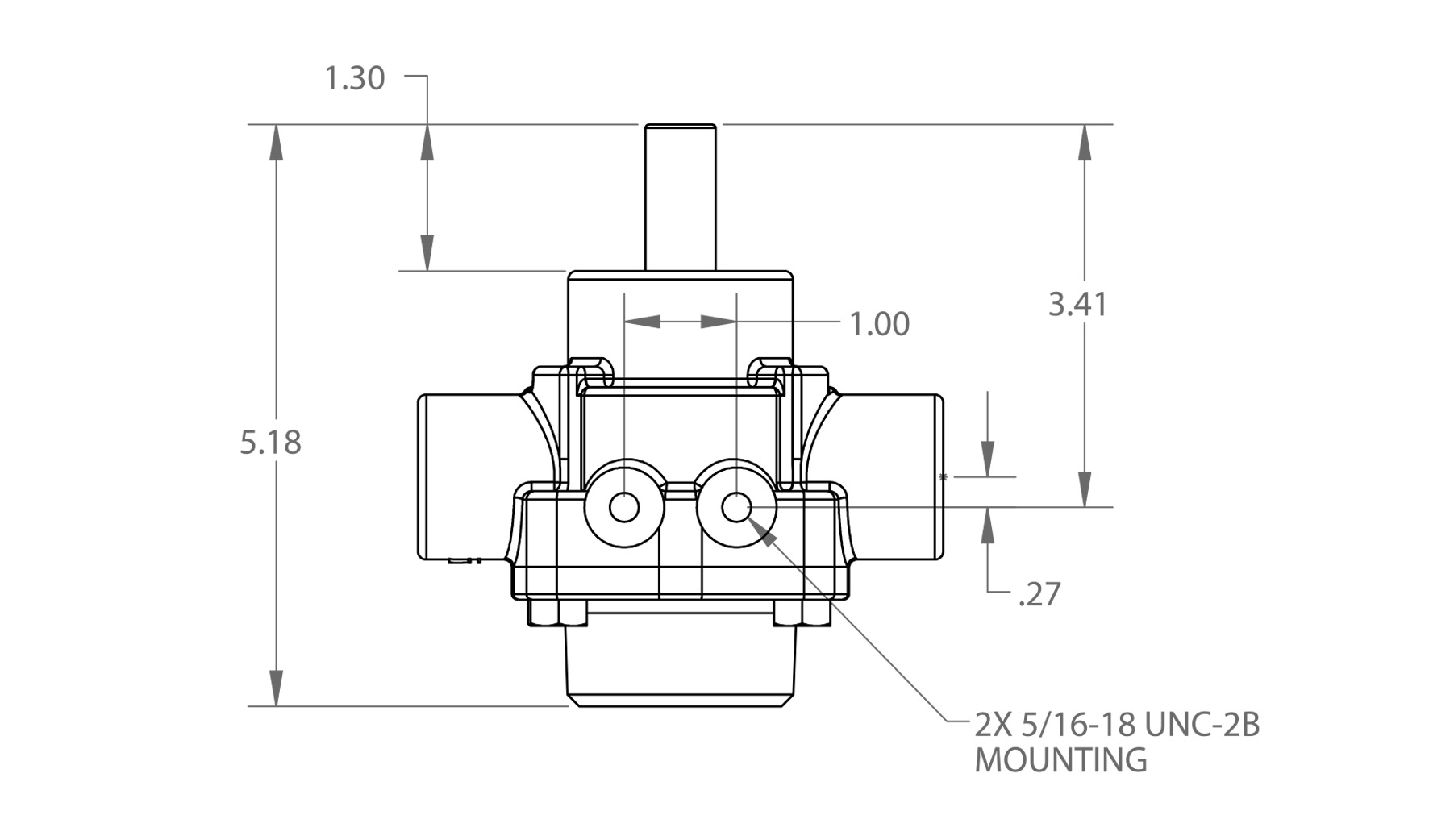

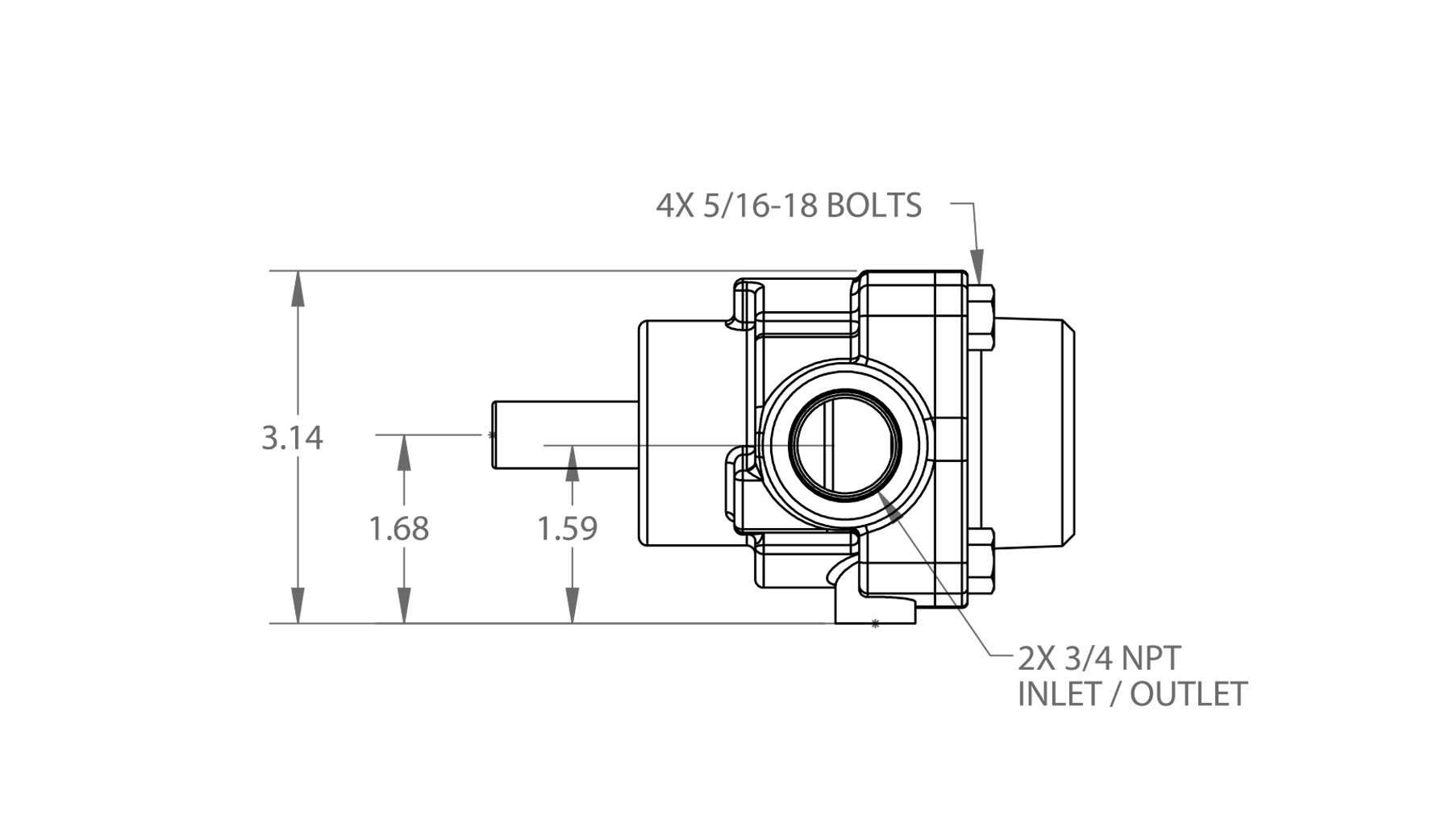

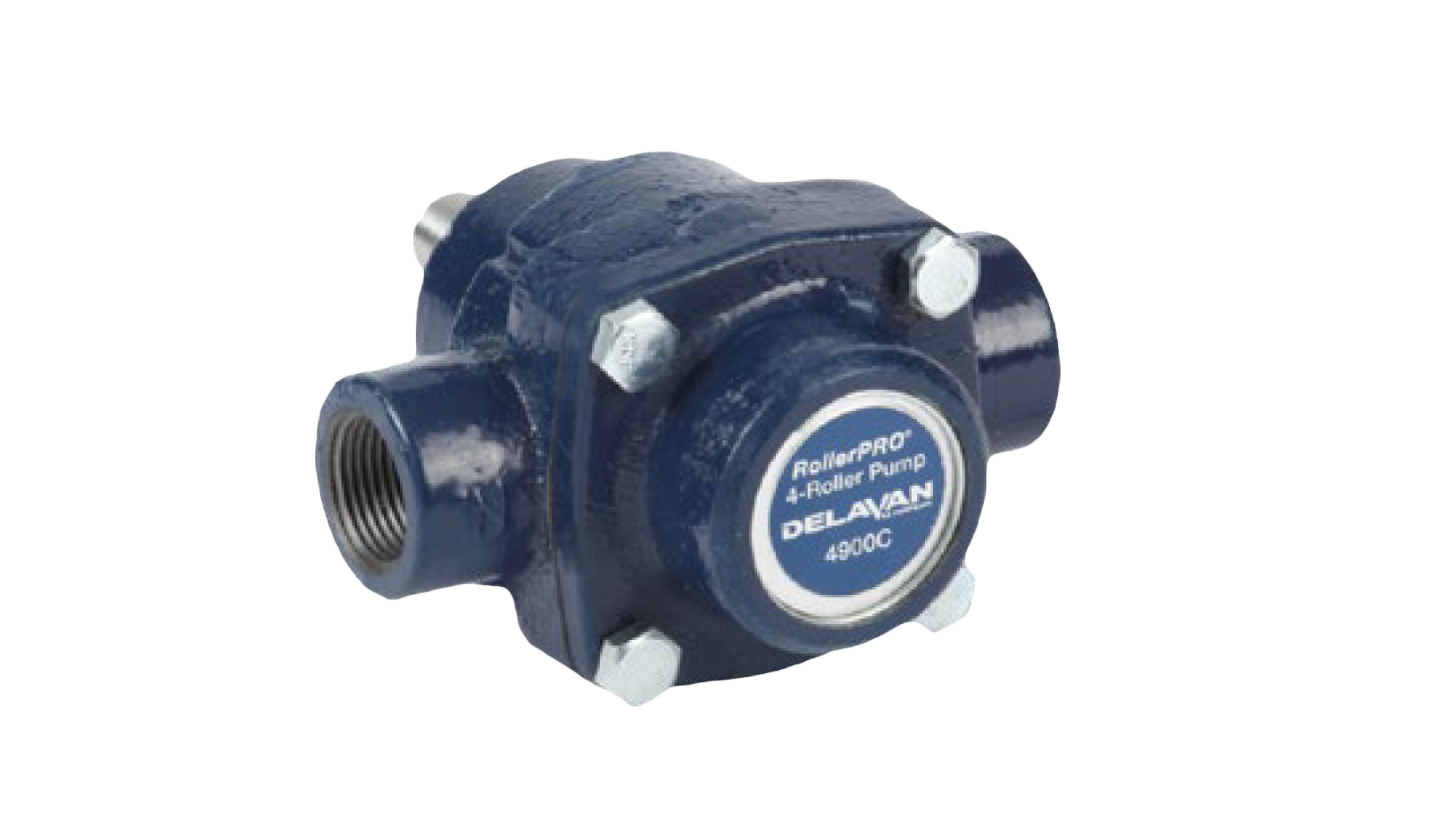

4900 Series
4900C – 9.2 GPM Pump / Cast Iron 5/8″ Solid Shaft, Clockwise Rotation
4901C – 9.2 GPM Pump / Cast Iron1/2″ Hollow Shaft, Clockwise Rotation
4900DSS – 9.2 GPM Pump / Diamond Stainless Steel 5/8″ Solid Shaft, Clockwise Rotation Roundup® Ready
4901DSS – 9.2 GPM Pump / Diamond Stainless Steel 5/8″ Solid Shaft, Clockwise Rotation Roundup® Ready
Pump
Type: 4-roller design
Max Pressure: 150 PSI
Max Recommended Temperature: 140ºF
Port Size: 3/4″ FNPT
Mounting: Base Mounted: 5/16″ – 18UNC-2B (2 holes)
Weight: 5 lbs
Materials of Construction:
Pump Housing: Cast Iron or Stainless Steel
Rollers: 1/2″ Ultra Rollers
Shaft Seals: Viton cartridge type lip seals
Shaft & Rotor:
C: Extra-fine finish 404 SST
DSS: Extra-fine finish 416 SST
Bearings: Permanently-lubricated, heavy-duty sealed bearings
4900 Series Performance
| PSI | 1800 RPM | 2200 RPM | 2600 RPM |
|---|---|---|---|
| 0 | 6.3 | 7.7 | 9.2 |
| 20 | 5.8 | 6.9 | 8.5 |
| 40 | 5 | 6.2 | 7.9 |
| 60 | 4.4 | 5.6 | 7.5 |
| 80 | 3.8 | 5.2 | 7.2 |
| 100 | 3.4 | 4.8 | 6.8 |

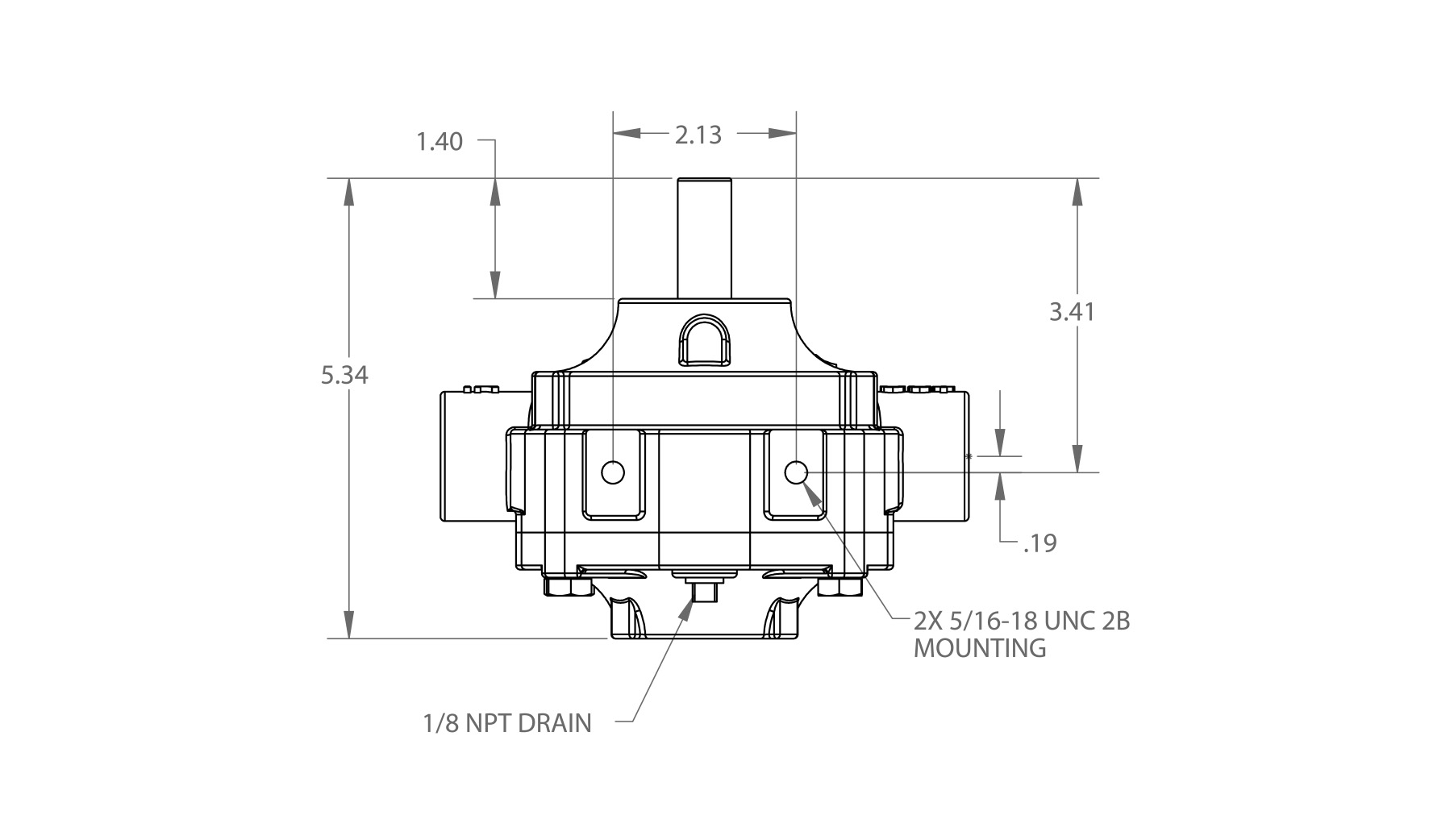

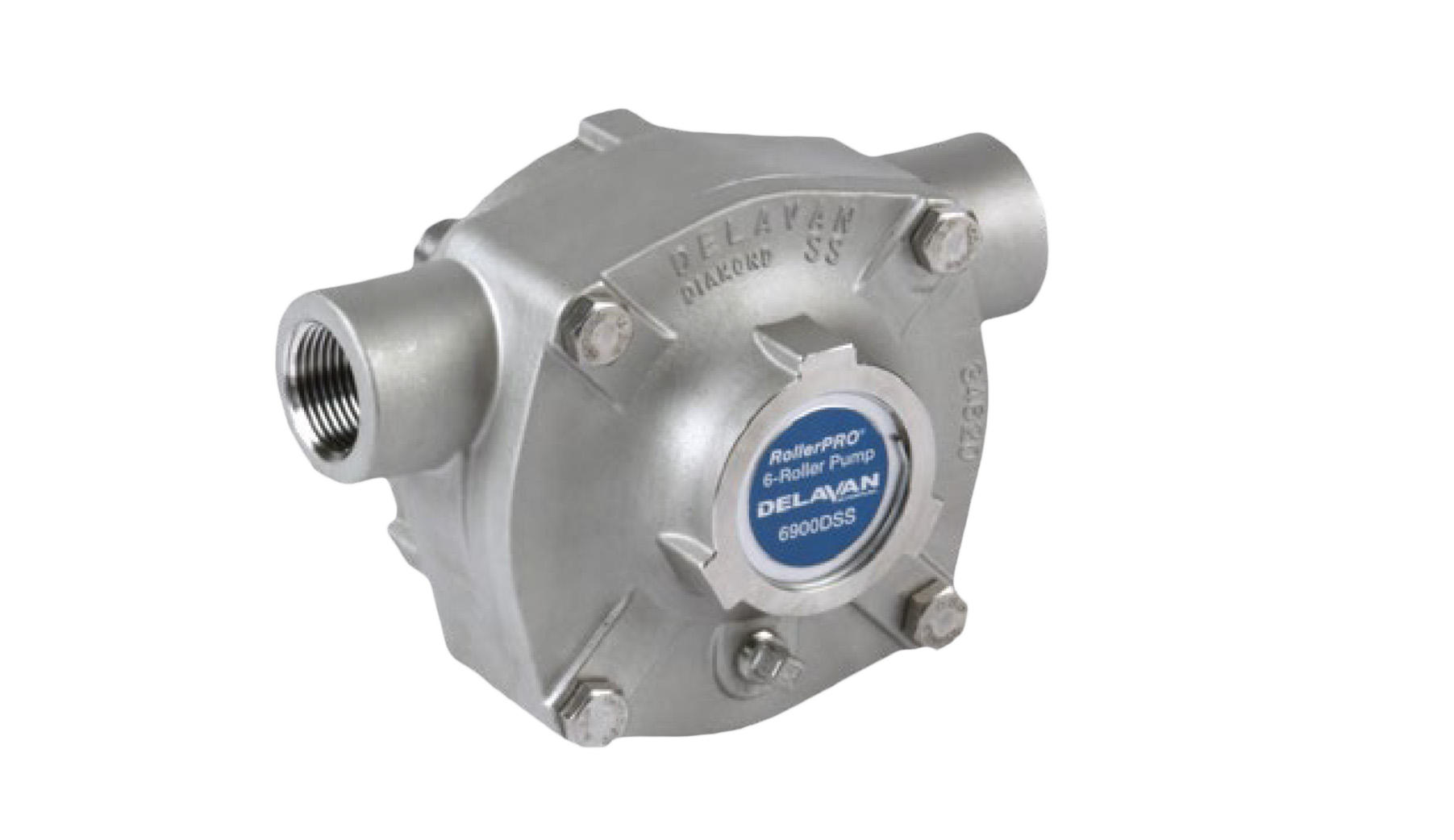

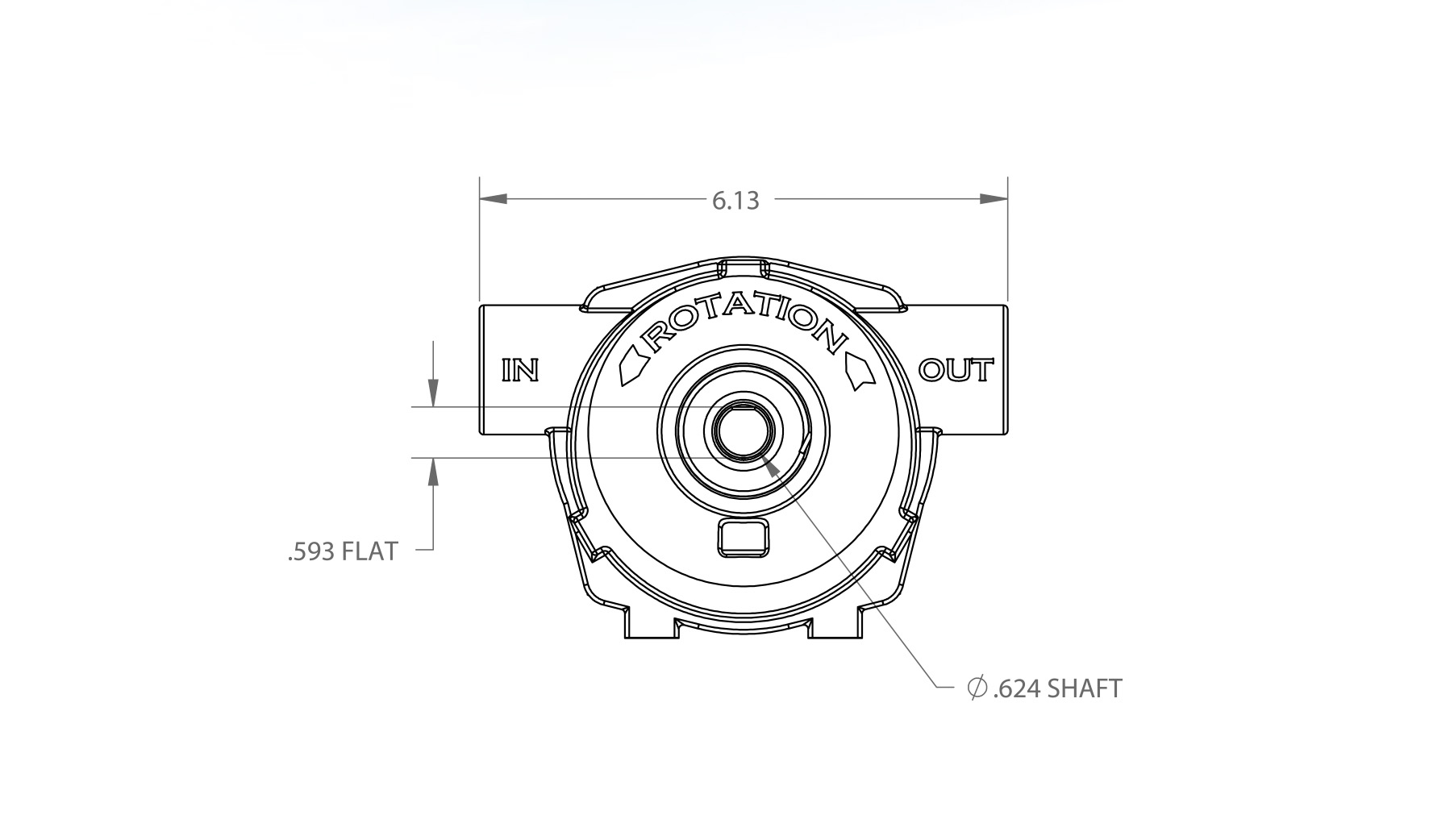

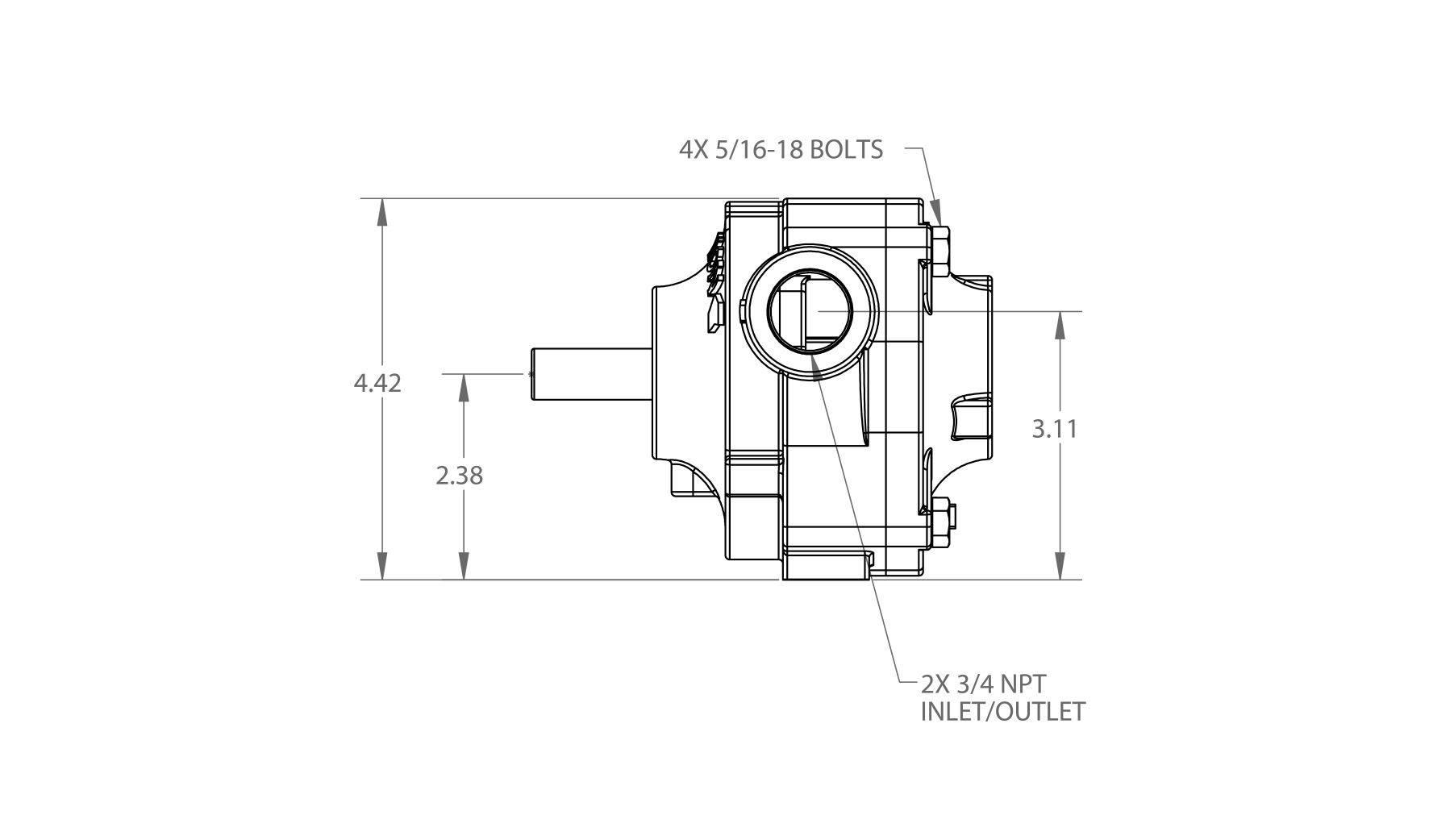

6900 Series
6900C – 19.6 GPM Pump/ Cast Iron
6900CR – 19.6 GPM Pump/ Cast Iron Reverse Rotation/Clockwise
6601C – 19.6 GPM Pump/ Cast IronRear Ports (Not Field Serviceable)
DKP-6900C – 19.6 GPM Pump/ Cast Iron #90200 Coupler and Torque Arm Kit
6900DSS – 19.6 GPM Pump/ Diamond Stainless Steel
6900DSSR – 19.6 GPM Pump/ Diamond Stainless Steel Reverse Rotation / Clockwise
DPK-6900DSS – 19.6 GPM Pump/ Diamond Stainless Steel
#90200 Coupler and Torque Arm Kit
Pump
Type: 6-roller design
Max Pressure: 300 PSI
Max Recommended Temperature: 140ºF
Port Size: 3/4″ FNPT
6900: side ports
6901: rear ports – Not field serviceable
Mounting: Base Mounted: 5/16″ – 18UNC-2B (2 holes)
PTO: Use Torque Bar and Chain Weight: 9 lbs
Materials of Construction:
Pump Housing: Cast Iron or Stainless Steel
Rollers: 1/2″ Ultra Rollers
Shaft Seals: Viton cartridge type lip seals
Shaft & Rotor: C Extra-fine finish 404 SST
DSS: Extra-fine finish 416 SST
Bearings: Permanently-lubricated, heavy-duty sealed bearings
6900 Series Performance
| PSI | 540 RPM | 1000 RPM | 1200 RPM |
|---|---|---|---|
| 0 | 10.5 | 19.6 | 22.8 |
| 20 | 9.7 | 19.0 | 22.0 |
| 40 | 8.6 | 18.4 | 21.3 |
| 60 | 6.9 | 16.3 | 19.7 |
| 80 | 4.8 | 13.9 | 17.9 |
| 100 | 3.0 | 11.5 | 15.8 |

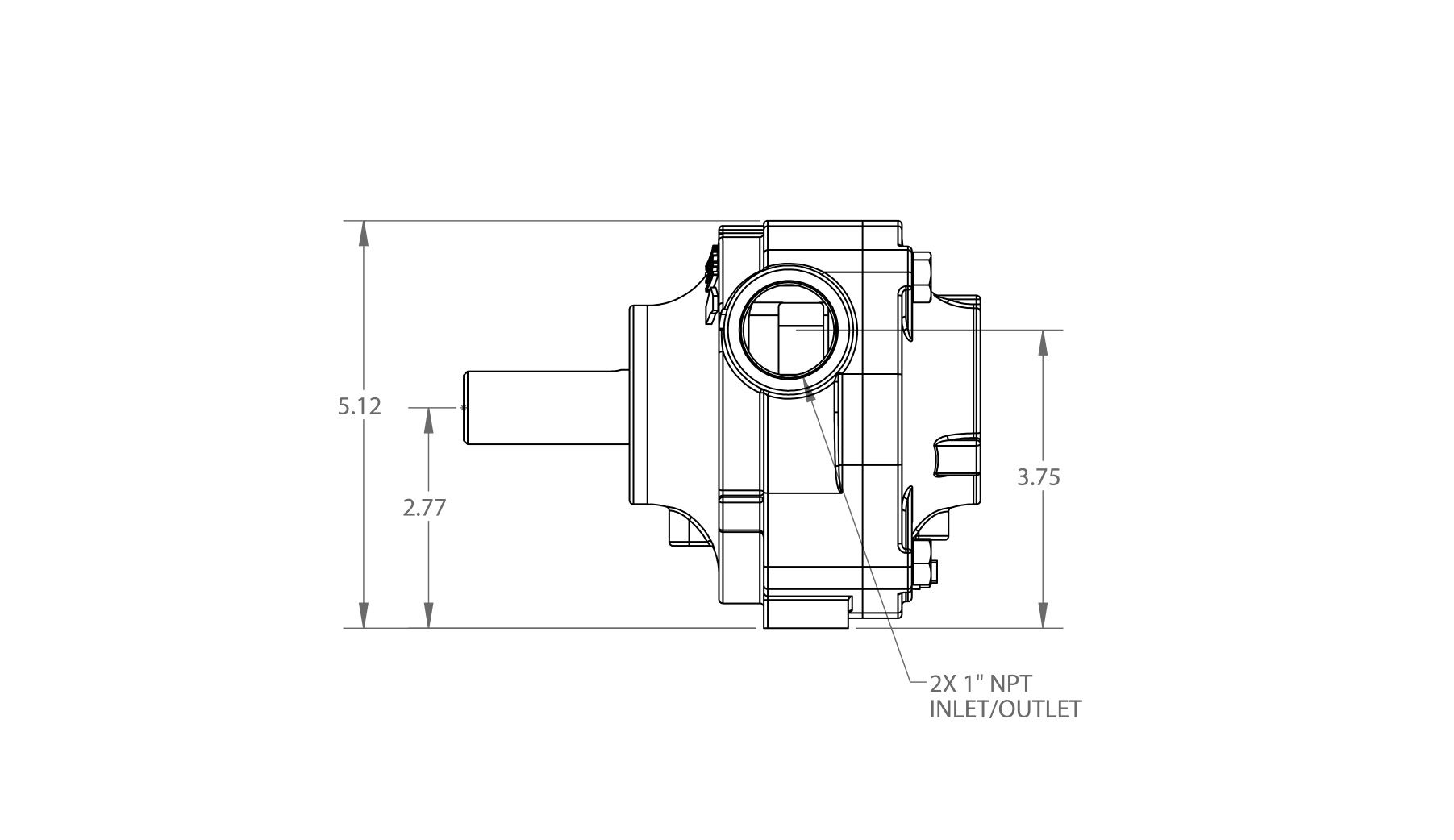

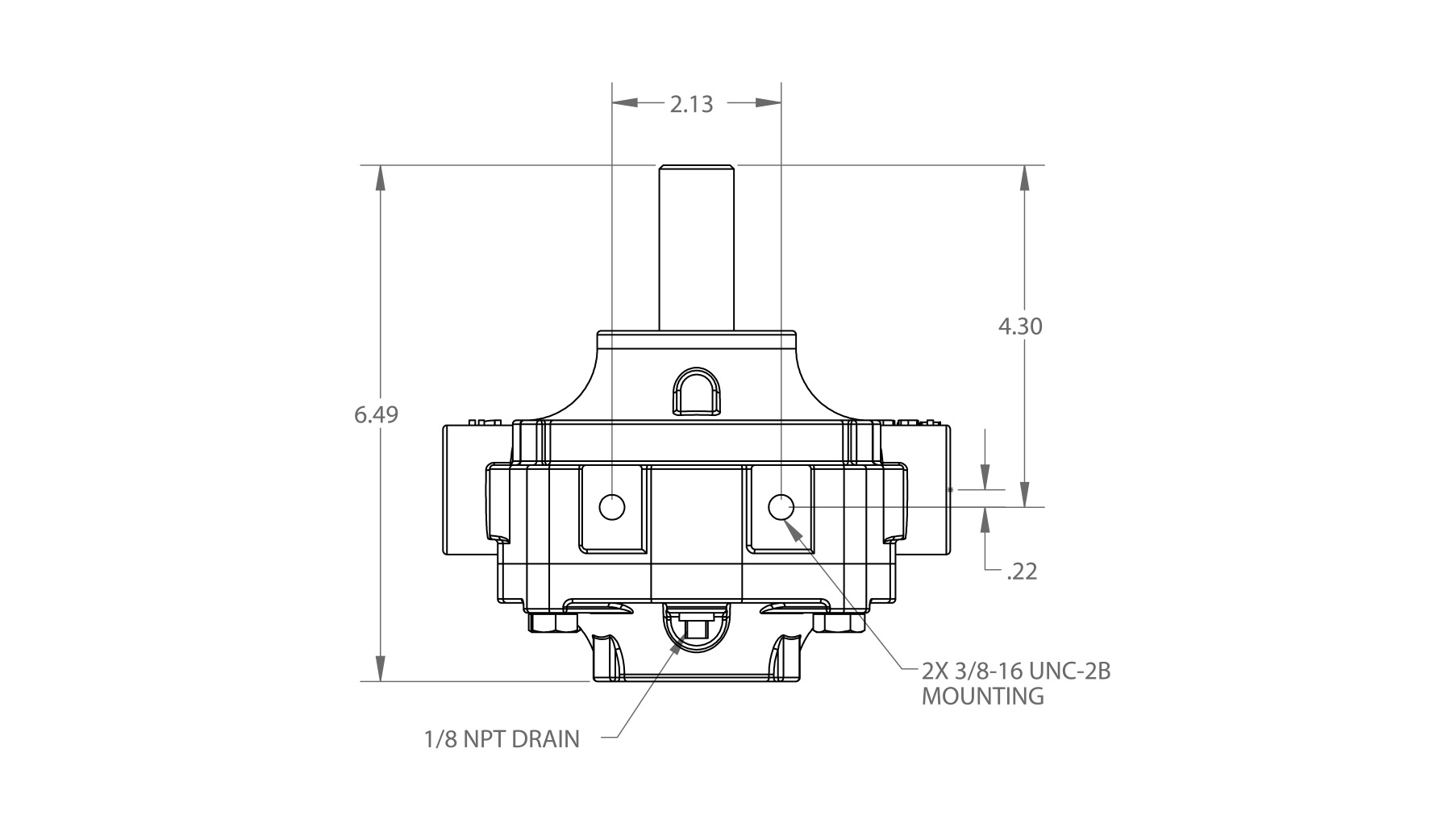

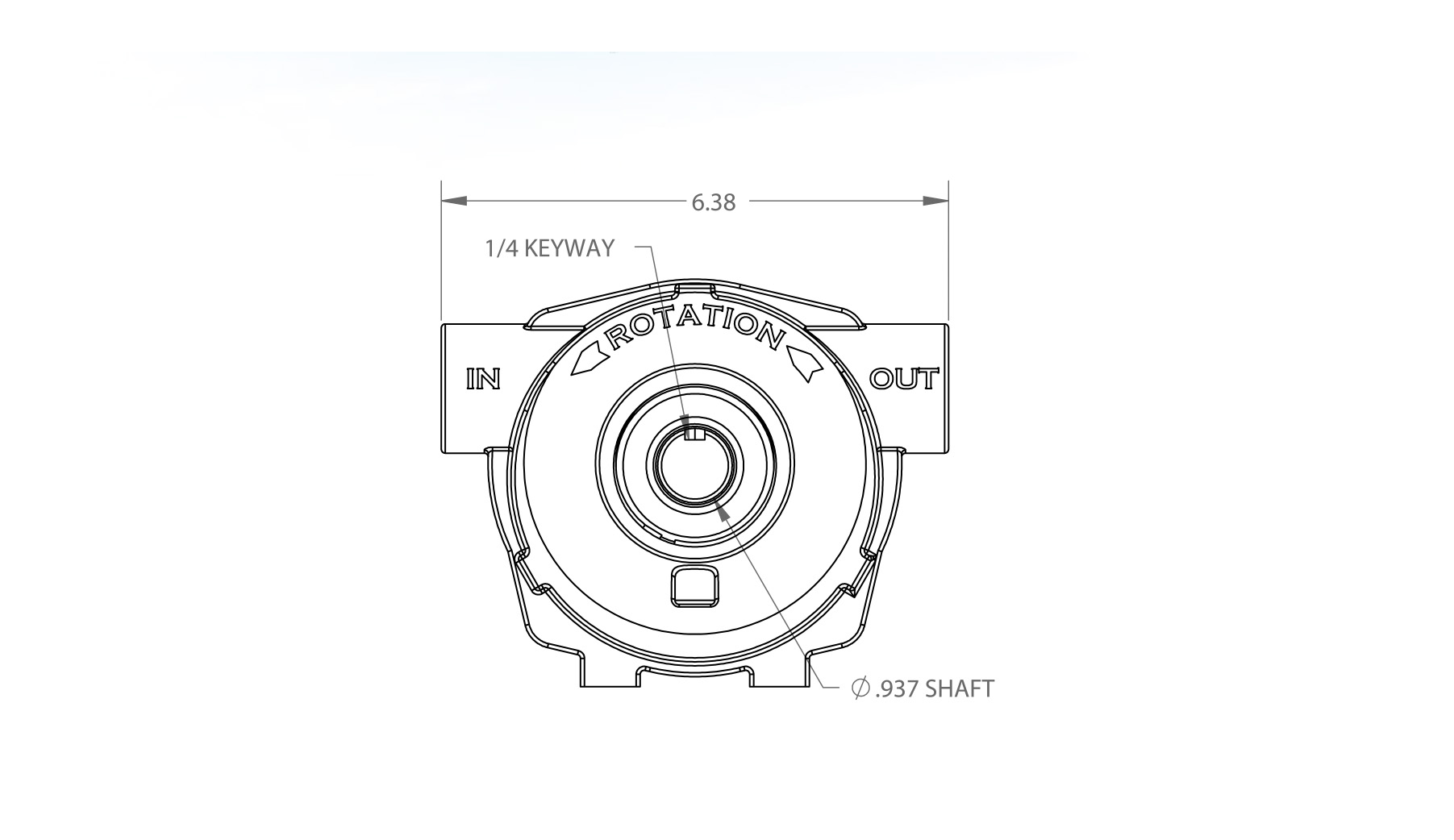

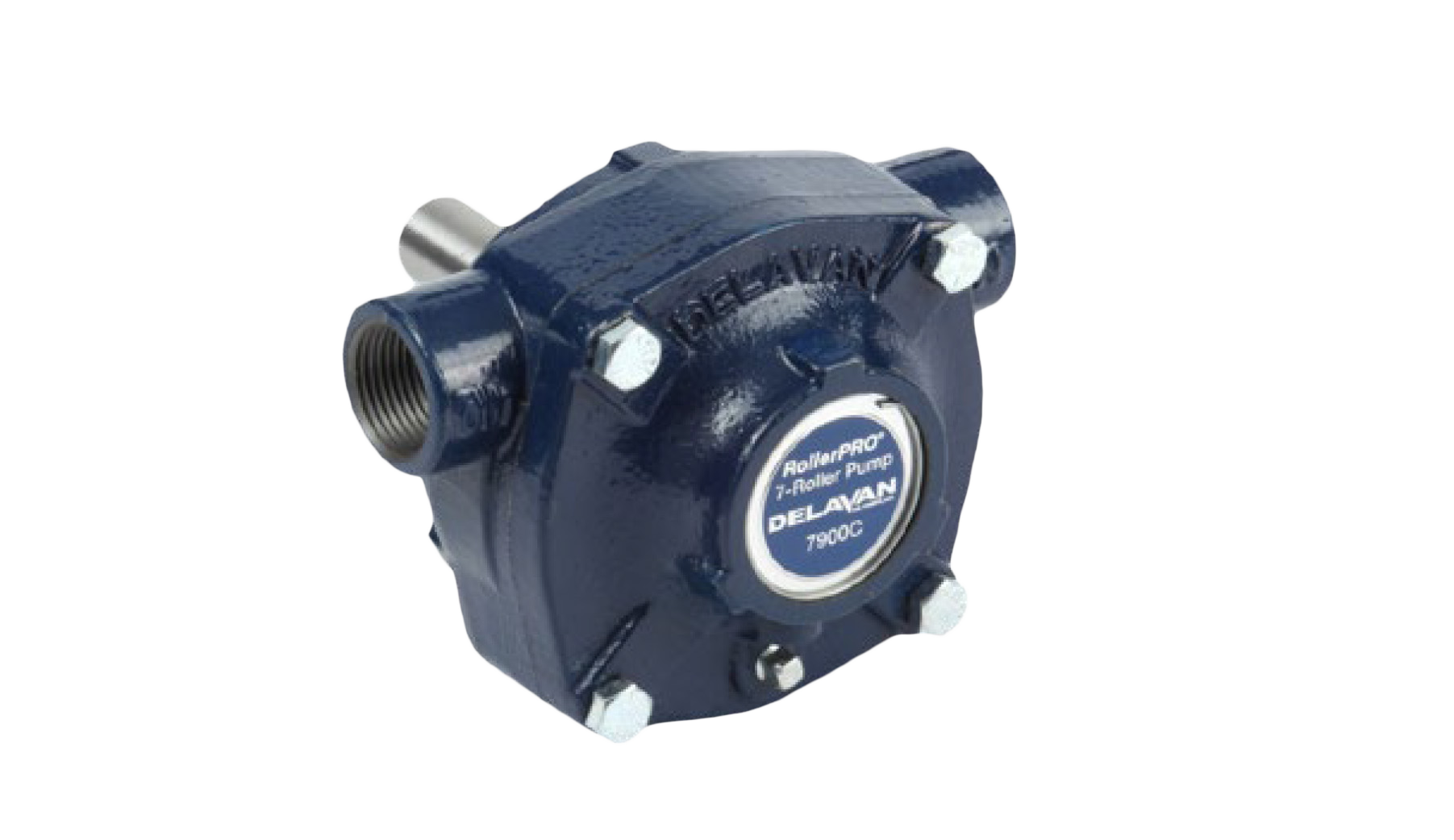

7900 Series
7900C – 22.5 GPM Pump/ Cast Iron
7900DSS – 22.5 GPM Pump/ Diamond Stainless Steel
Pump
Type: 7-roller design
Max Pressure: 200 PSI
Max Recommended Temperature: 140ºF
Port Size: 1″ FNPT
Mounting:
Base Mounted: 3/8″– 18UNC-2B (2 holes)
PTO: Use Torque Bar and Chain
Weight: 14 lbs
Materials of Construction:
Pump Housing: Cast Iron or Stainless Steel
Rollers: 3/4″ Ultra Rollers
Shaft Seals: Viton cartridge type lip seals
Shaft & Rotor: C Extra-fine finish 404 SST
DSS: Extra-fine finish 416 SST
Bearings: Permanently-lubricated, heavy-duty sealed bearings
7900 Series Performance
| PSI | 540 RPM | 650 RPM | 850 RPM |
|---|---|---|---|
| 0 | 15.2 | 17.7 | 22.5 |
| 20 | 14.5 | 17.0 | 21.8 |
| 40 | 13.6 | 16.2 | 21.0 |
| 100 | 12.0 | 15.0 | 20.0 |
| 200 | 10.0 | 13.9 | 18.0 |

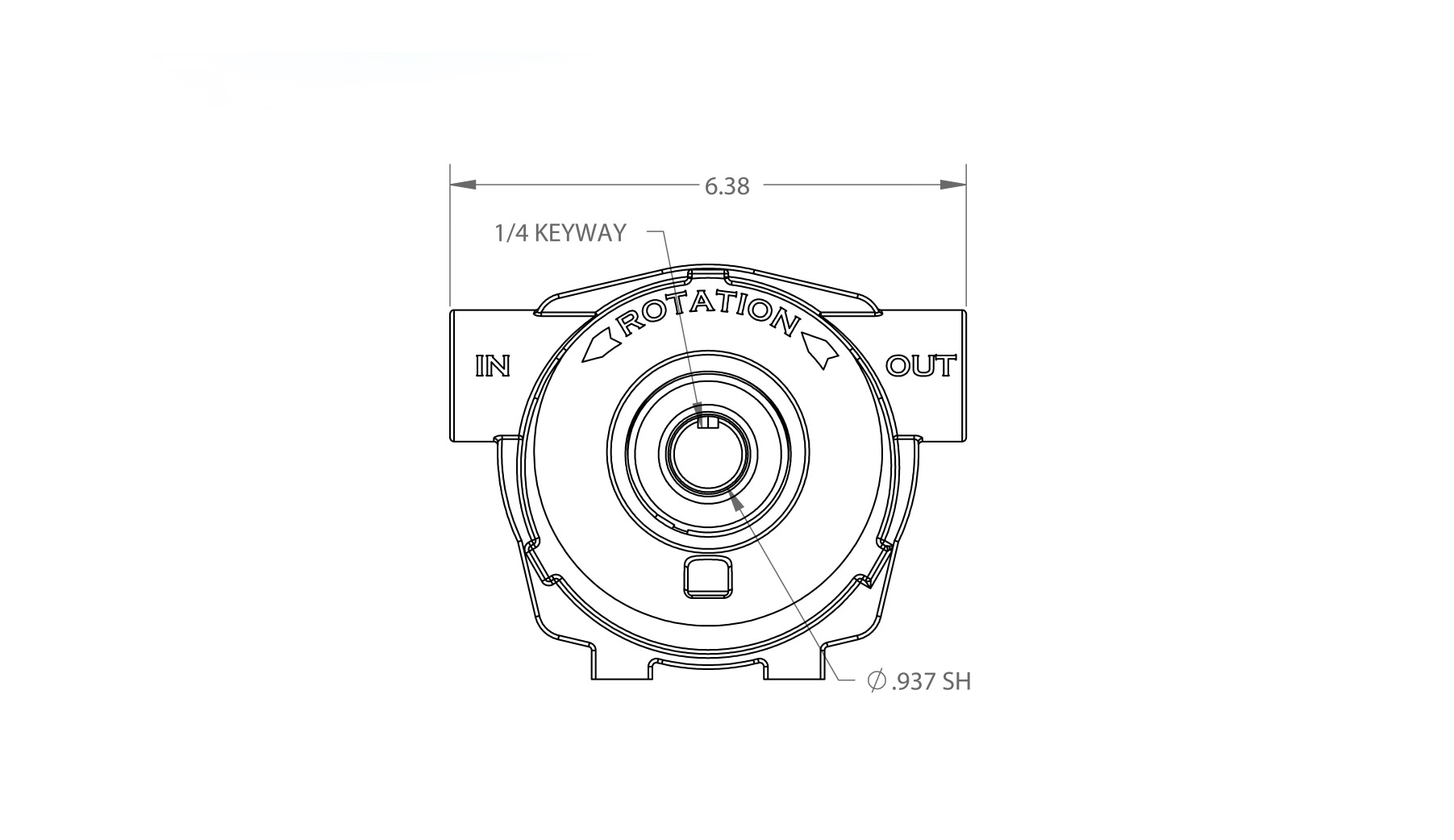

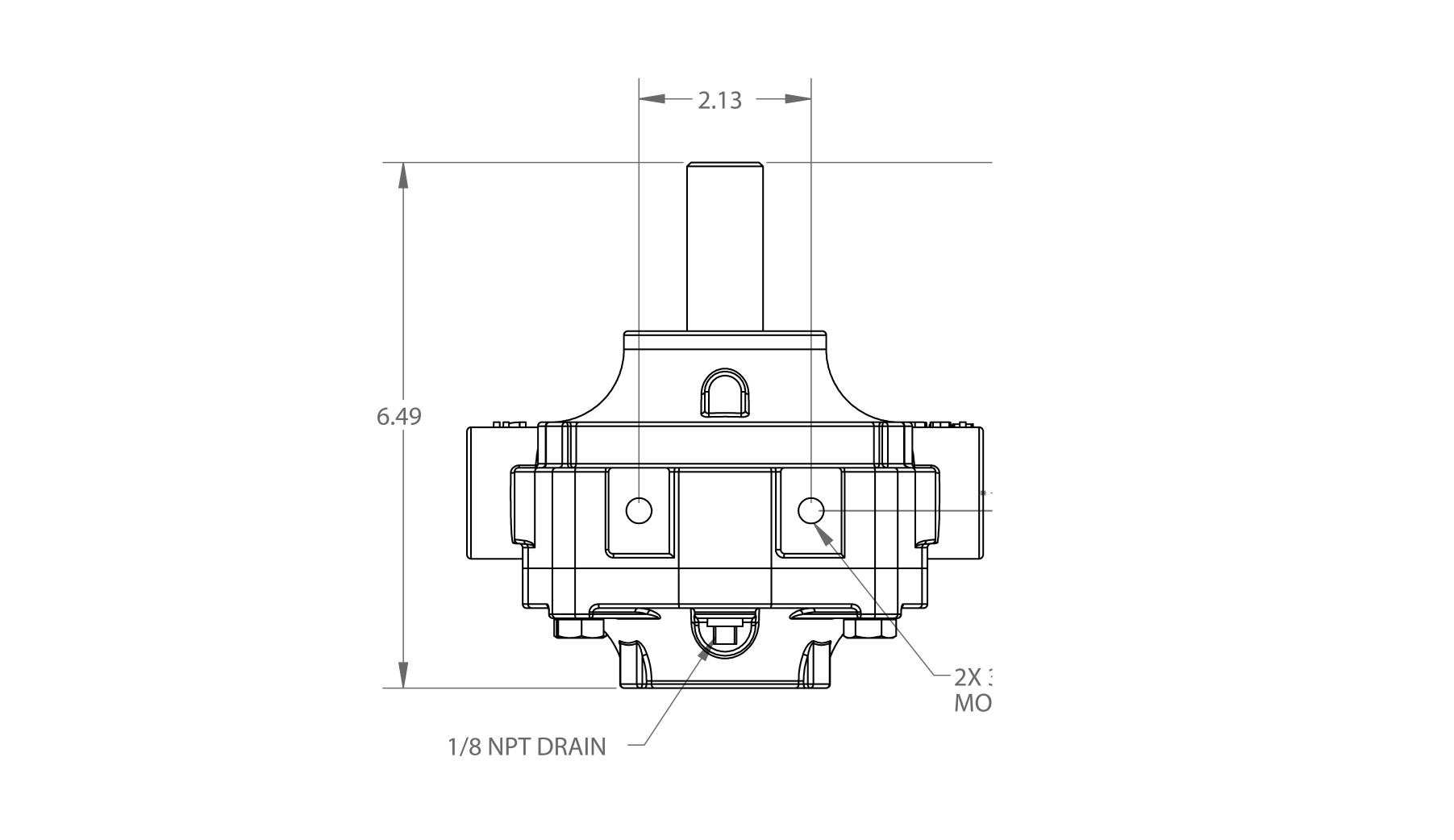

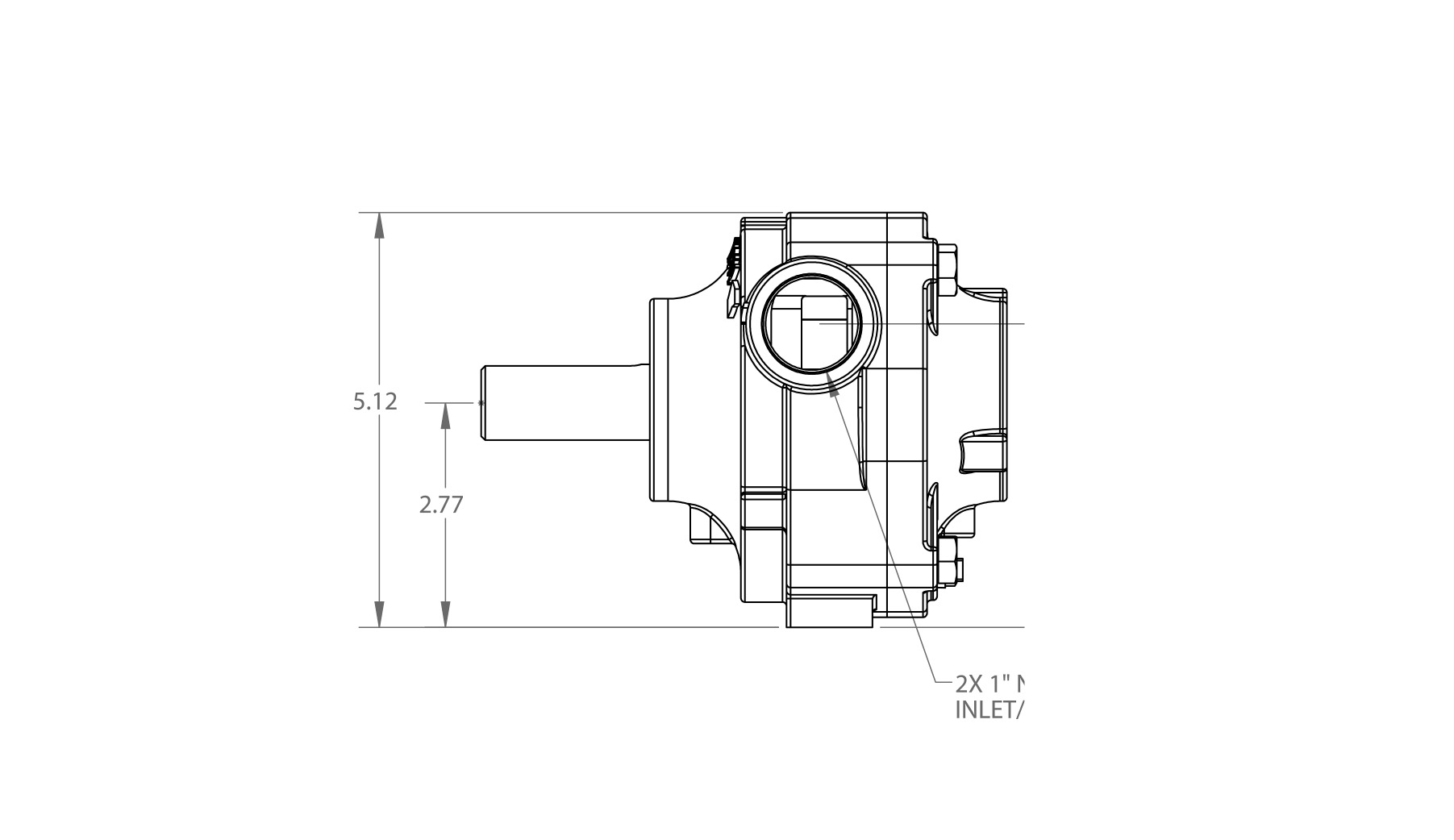

8900 Series
8900C – 24 GPM Pump/ Cast Iron
8900CR– 24 GPM Pump/ Cast Iron Reverse Rotation/Clockwise
DKP-8900C – 24 GPM Pump/ Cast Iron #90300 Coupler and Torque Arm Kit

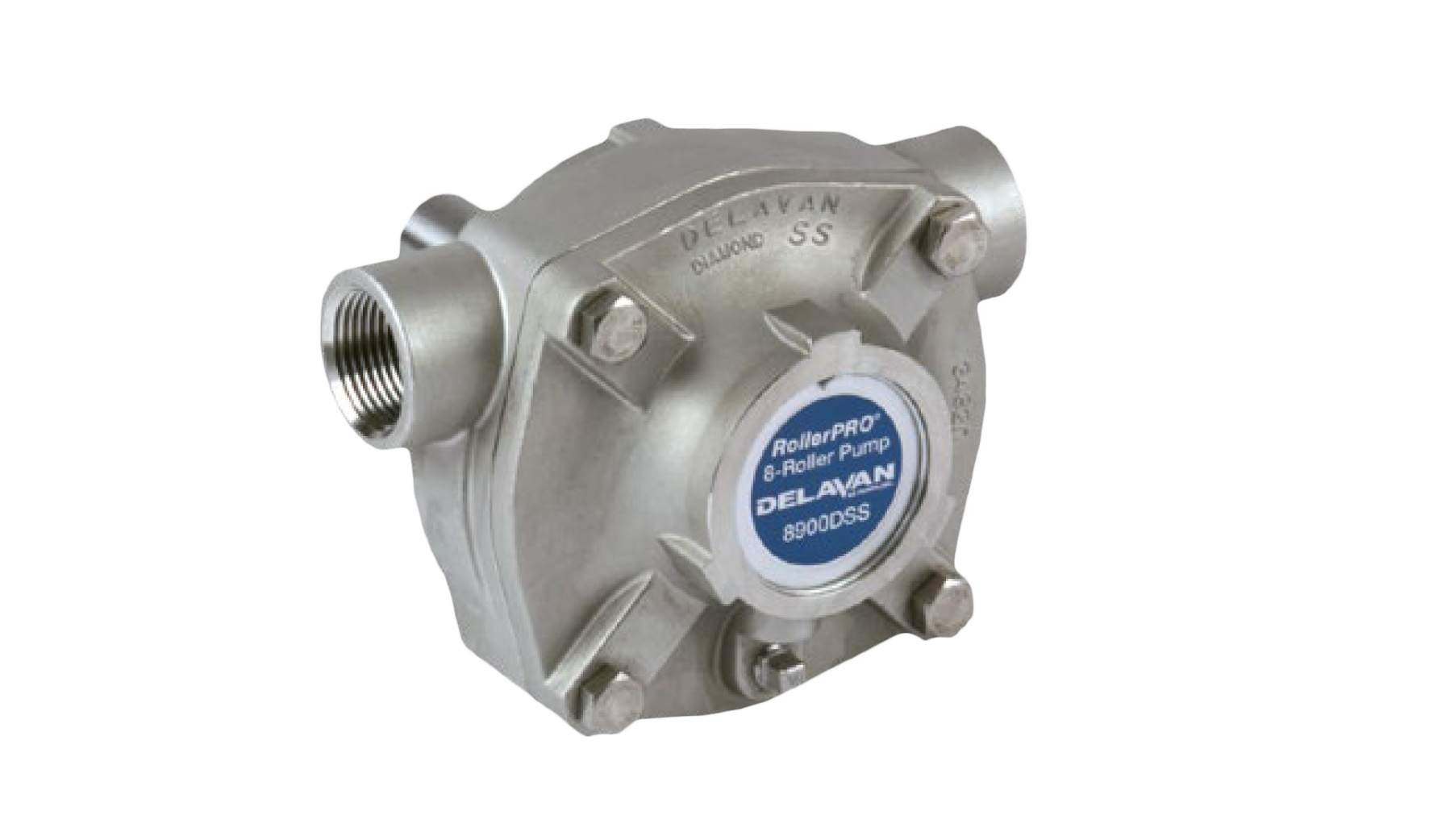

8900DSS – 24 GPM Pump/ Diamond Stainless Steel
8900DSSR – 24 GPM Pump/ Diamond Stainless Steel Reverse Rotation / Clockwise
DPK-8900DSS – 24 GPM Pump/ Diamond Stainless Steel
#90300 Coupler and Torque Arm Kit
Pump
Type: 8-roller design
Max Pressure: 300 PSI
Max Recommended Temperature: 140ºF
Port Size: 1″ FNPT
Mounting:
Base Mounted: 3/8″– 18UNC-2B (2 holes)
PTO: Use Torque Bar and Chain
Shaft: 15/16″ Solid Shaft
Weight: 14 lbs
Materials of Construction:
Pump Housing: Cast Iron or Stainless Steel
Rollers: 3/4″ Ultra Rollers
Shaft Seals: Viton cartridge type lip seals
Shaft & Rotor:
C: Extra-fine finish 404 SST
DSS: Extra-fine finish 416 SST
Bearings: Permanently-lubricated, heavy-duty sealed bearings
8900 Series Performance
| PSI | 540 RPM | 650 RPM | 850 RPM |
|---|---|---|---|
| 0 | 13.0 | 20.2 | 24.0 |
| 20 | 12.4 | 19.8 | 23.2 |
| 40 | 11.6 | 19.1 | 22.4 |
| 100 | 10.6 | 18.6 | 21.8 |
| 200 | 8.9 | 15.7 | 18.0 |
| 300 | 7.0 | 14.0 | 17.1 |
Roller Pro Accessories

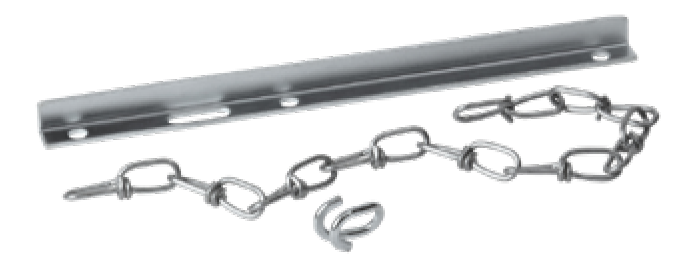

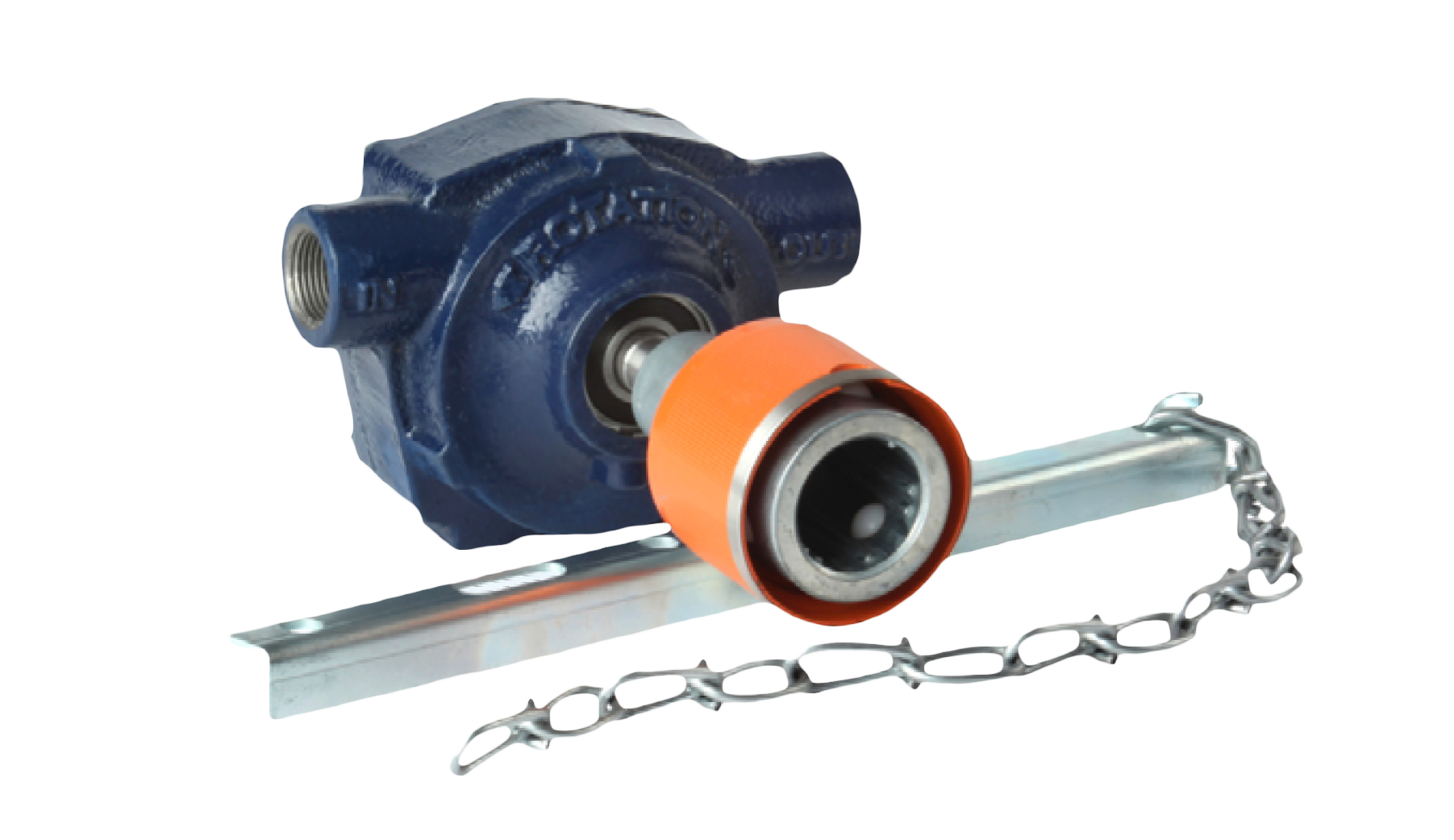

Torque Bar and Chain
The Torque Bar and Chain is needed to anchor a PTO-mounted pump to keep it from turning with the PTO shaft. Fits all roller pumps
Part# 33680
RollerPRO Pump Kits
6-Roller Pump Kit
Roller pump with CCW rotations, #90200 coupler, and torque arm kit
Part# DPK – 6900C (Cast Iron)
Part# DPK – 6900DSS (Diamond Stainless Steel)
8-Roller Pump Kit
Roller pump with CCW rotations, #90300 coupler, and torque arm kit
Part# DPK – 8900C (Cast Iron)
Part# DPK – 8900DSS (Diamond Stainless Steel)

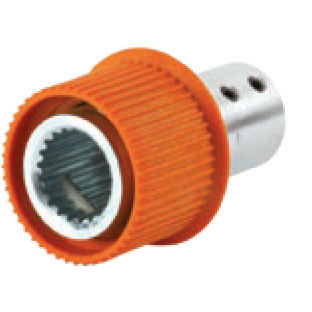

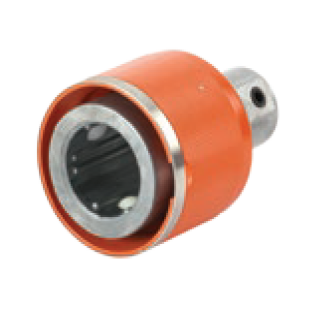

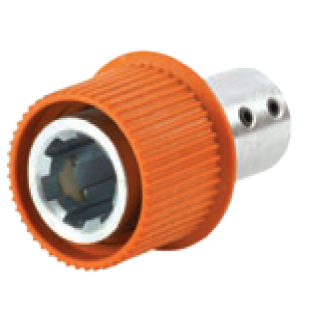

Quick Couplers
| Part # | PTO | Shaft | Tooth | Body | Max RPM | Multi-Speed |
|---|---|---|---|---|---|---|
| 90000 | 1 3/8″ | 5/8″ | 9 | Forged Steel | 540-1000 | Yes |
| 90100 | 1 3/8″ | 15/16″ | 9 | Forged Steel | 540-1000 | Yes |
| 90200 | 1 3/8″ | 5/8″ | 9 | Die Cast Aluminum | 540-1000 | Yes |
| 90300 | 1 3/8″ | 15/16″ | 9 | Die Cast Aluminum | 540-1000 | Yes |
| 90400 | 1 3/8″ | 5/8″ | 21 | Forged Steel | 1000 | No |
| 90500 | 1 3/8″ | 15/16″ | 21 | Forged Steel | 1000 | No |
| 90600 | 1 3/8″ | 5/8″ | 6 | Forged Steel | 540 | No |
| 90700 | 1 3/8″ | 15/16″ | 6 | Forged Steel | 540 | No |
| 90800 | 1 3/4″ | 15/16″ | 20 | Forged Steel | 1000 | No |
(Mild Steel Body & Set Screws)

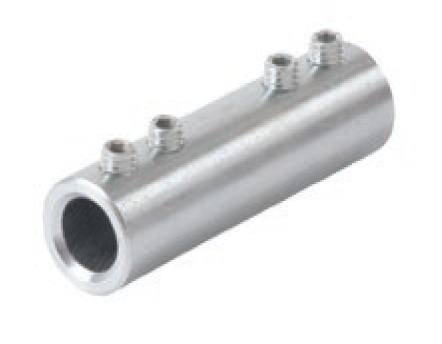

Set Screw Coupler
| Part # | Compatible Pumps | Pump | Drive | Max RPM |
|---|---|---|---|---|
| 50101 | 4400 | 5/8″ | 5/8″ |

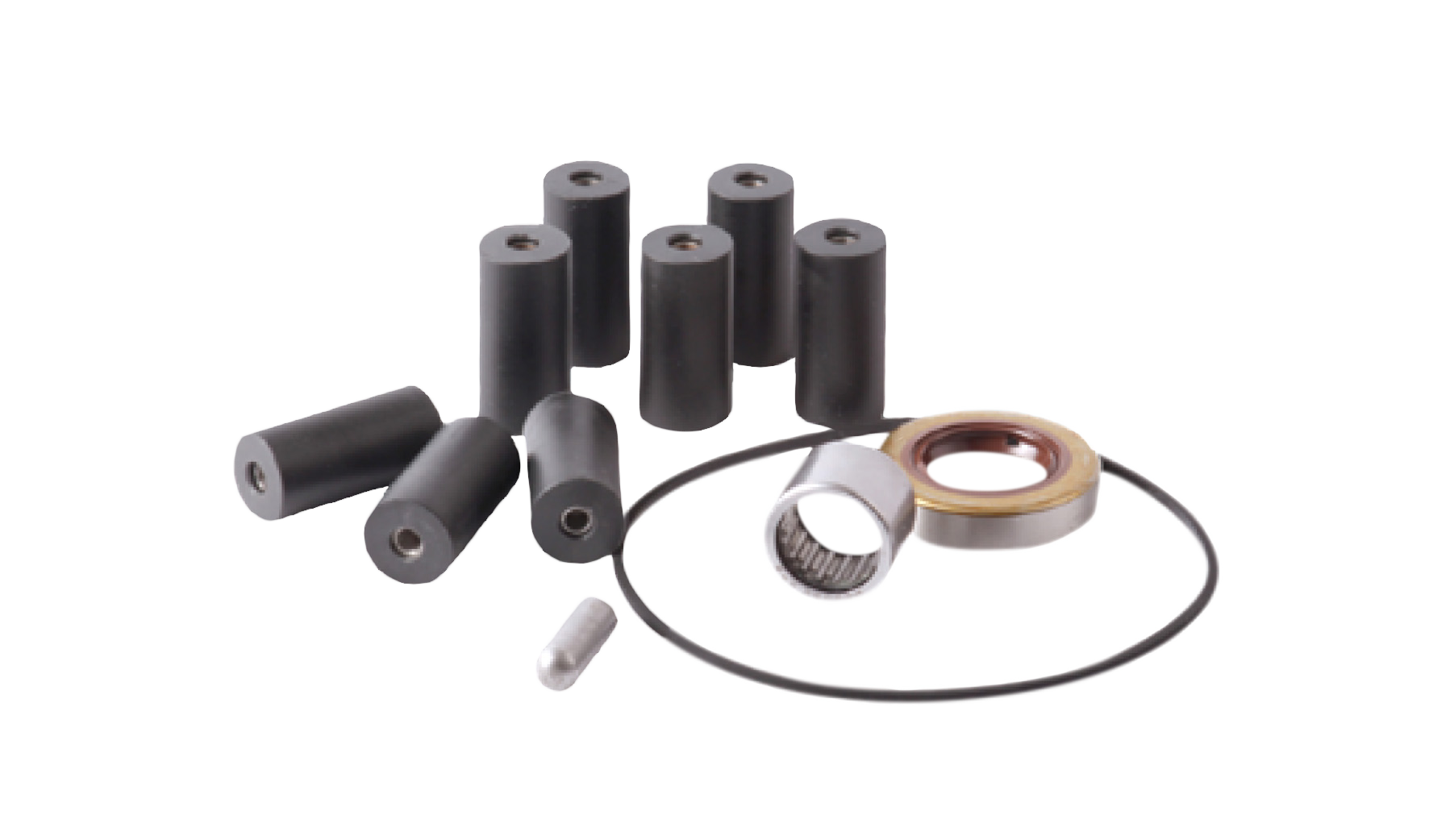

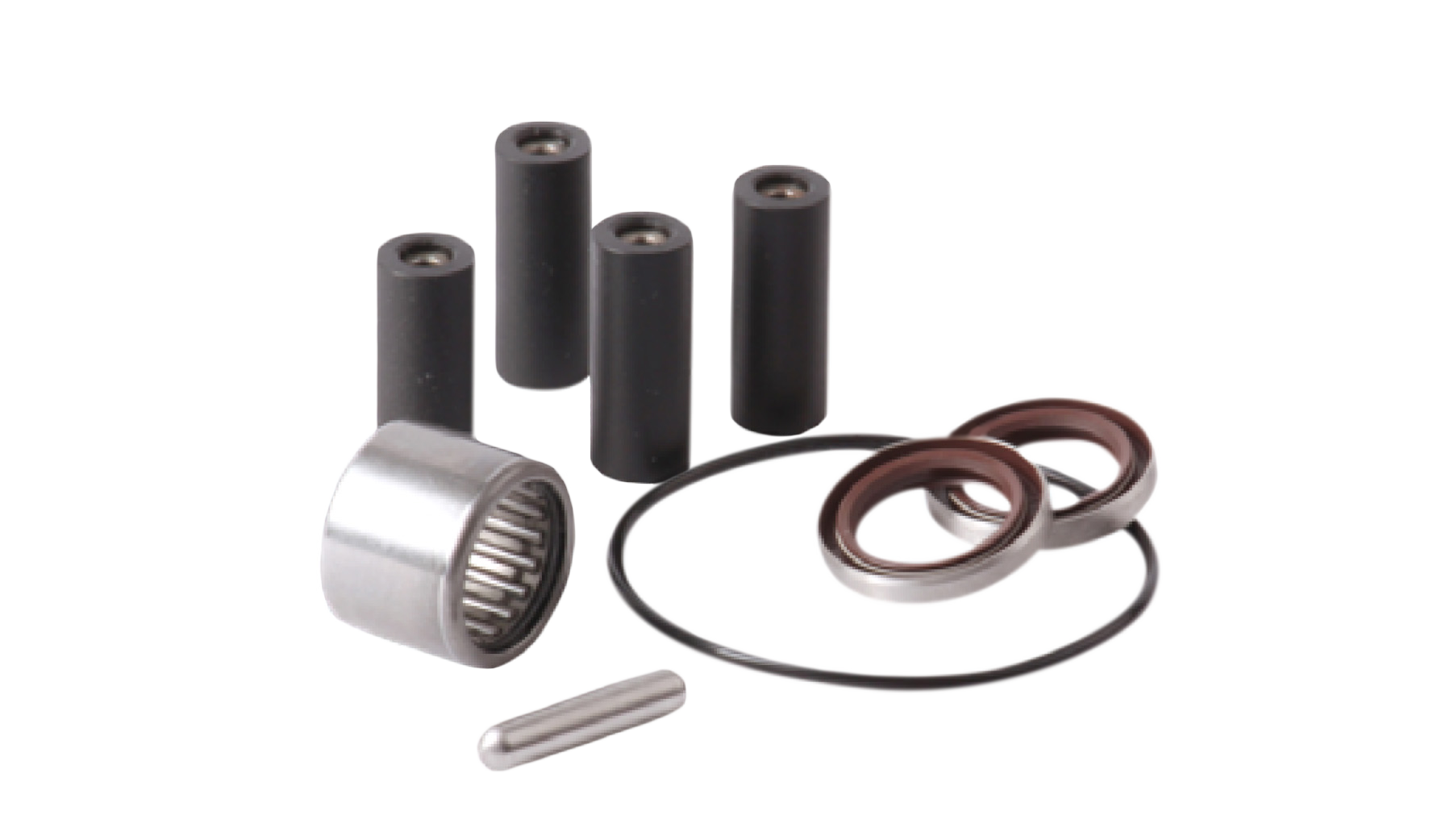

RollerPro Pump Repair Kits
RollerPro Repair Kits
Kit contains 3/4″ ultra rollers, shaft seals seal ring,
shaft key and instructions.
4900 Pump – Part# RK-4900
6900 Pump – Part# RK-6900
7900 Pump – Part# RK-7900
8900 Pump – Part# RK-8900
Competitive Pump Repair Kits
Ace, Hypro, TSC, Century, and Teel Pumps.
Kit includes 11/16″ diameter roller and Viton seals.
6 Roller Kit – Part# 18756
8 Roller Kit – Part# 18768
Old Style Delavan Roller Pump Repair Kits
Kit contains rollers, shaft seals, O-rings and instructions
66-3110 Pump – Part# 25227
77-3110 Pump – Part# 25228
77-4111 Pump – Part# 25228
77-311 Pump – Part# 25228
77-410 Pump – Part# 25228
Universal Rotter Pump Repair Kits
Kit contains 11/16″ ultra rollers, shaft seals,
O-rings, and instructions.*Repairs Delavan and Hypro Roller Pumps
4400 Pump – Part# 44-4000RK
5500 Pump – Part# 55-1700RK
6600 Pump – Part# 66-6500RK
7000 Pump – Part# 77-7700RK
8800 Pump – Part# 88-7560RK
