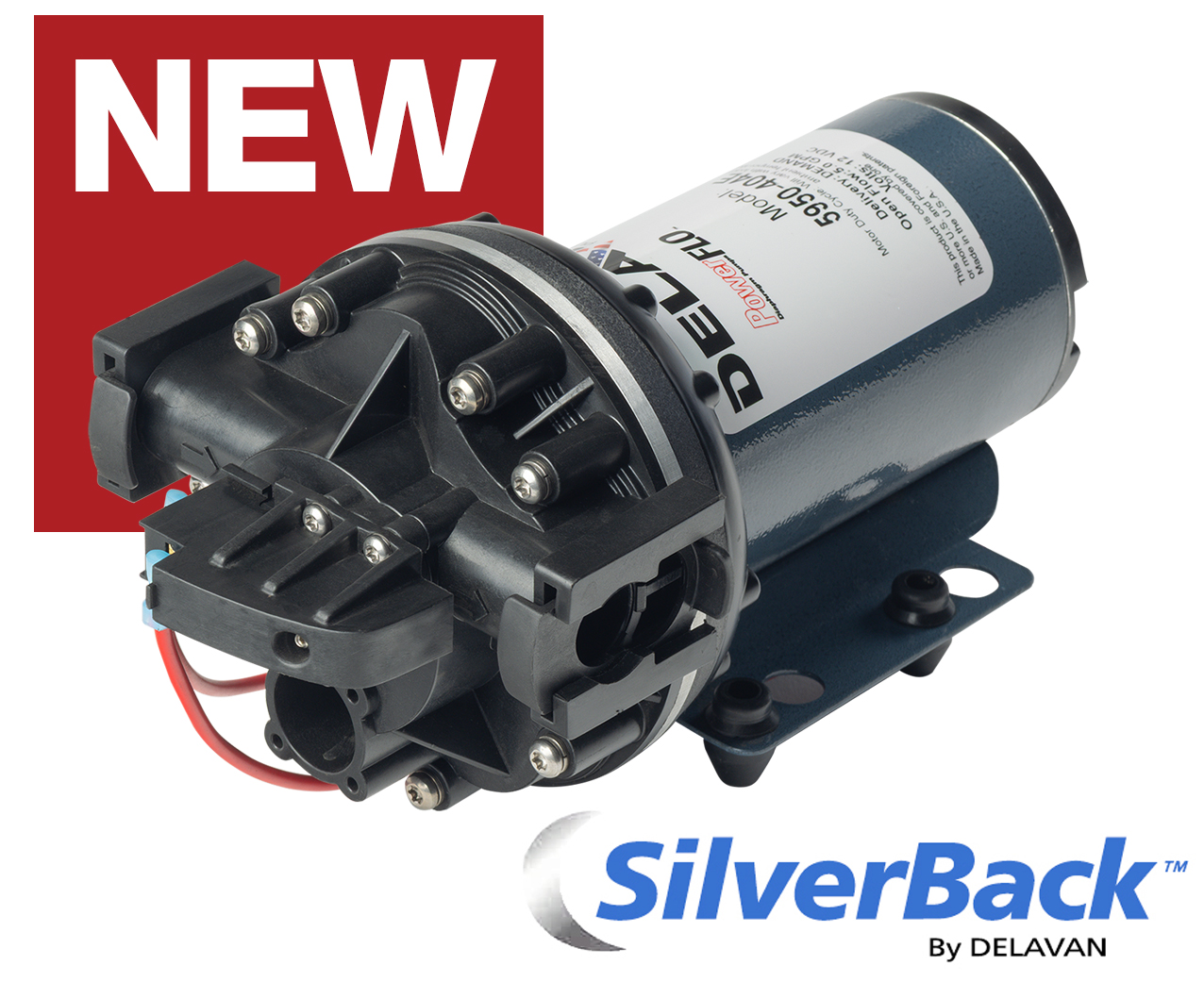

SilverBack™ Series – 5.0 GPM
Product Details
Delavan Fluid Power offers the SilverBack Series pumps in a variety of models to match your systems needs. Our new patent-pending design allows for continuous duty and maximized pump and motor efficiency.
The SilverBack series has up to 25% lower Amp draw and 30% lower motor temperature to comparable pumps.
We currently offer a 5 GPM pump. The pumps are configured with threaded or quick attach ports, and 12 VDC Power.
Pump Type: Bypass, Demand
Flow: Up to 5.0 GPM
Pressure: Up to 60 PSI
Valves: Viton
Diaphragm: Santoprene
Ports: 1/2” FNPT, ¾” Quick Attach
Power: 12V – Wire Leads with 2-pin molded connector
Weight: 8 lbs.
Packaging: Bulk Box, Retail Box
Shipping: 6 per carton, single
- 100% Factory tested
- NSF Approved
- Self-Priming
- Can be run dry
Additional Specifications
SilverBack Series Standard Pumps
Custom configuration available per customer request.
| Part Number | GPM | Controls | PSI | Valves | Diaphragm | Ports | Power |
|---|---|---|---|---|---|---|---|
| 5850-404E | 5 | Demand | 60 | Viton | Santoprene | Threaded | 12 VDC |
| 5950-404E | 5 | Demand | 60 | Viton | Santoprene | Q/A | 12 VDC |
| 5850-411E | 5 | Bypass | 60 | Viton | Santoprene | Threaded | 12 VDC |
| 5950-411E | 5 | Bypass | 60 | Viton | Santoprene | Q/A | 12 VDC |
| 5850-421F | 5 | Bypass/Demand | 60 | Viton | Santoprene | Threaded | 12 VDC |
| 9850-421F | 5 | Bypass/Demand | 60 | Viton | Santoprene | Q/A | 12 VDC |
Energy use compared to typical 12V pumps
| PSI | GPM | SilverBack Amps | Typical Amps (12V Pumps) |
|---|---|---|---|
| 0 | 5.6 | 4.9 | 8.2 |
| 10 | 5.2 | 6.0 | 10.4 |
| 20 | 4.6 | 7.1 | 12.5 |
| 30 | 4.3 | 8.5 | 15.1 |
| 40 | 4.0 | 9.6 | 16.3 |
| 50 | 3.6 | 10.5 | 17.1 |
| 60 | 3.4 | 11.6 | 17.9 |
