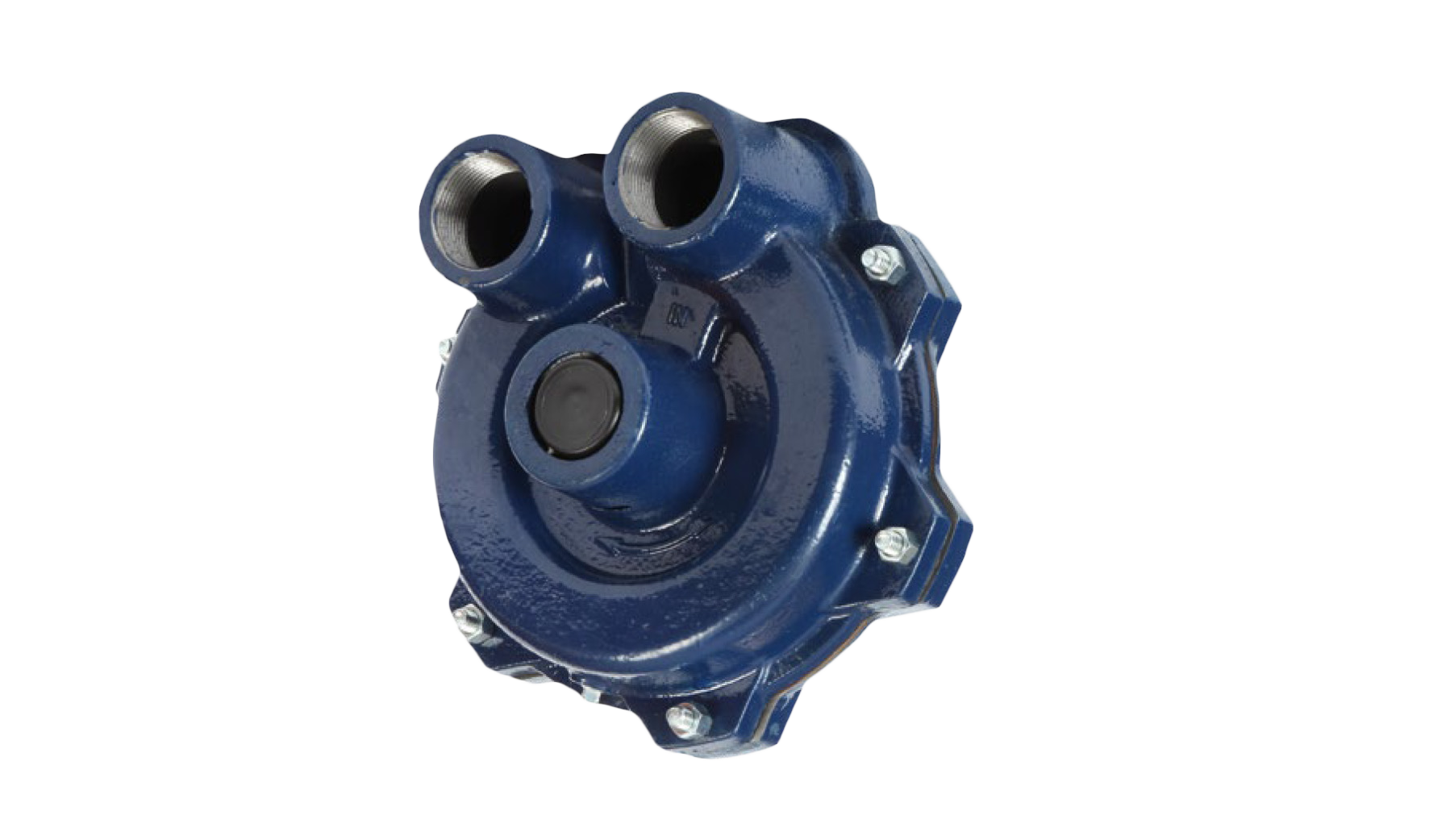

TURBO 90 Series
Product Details
26556-4 – Turbo90 with standard duty lip seals
26556-11 – Turbo90 with severe duty face seals
Pump
Type: Turbine, cannot run dry
Max pressure: 100 PSI
Max Recommended Temperature: 120°F

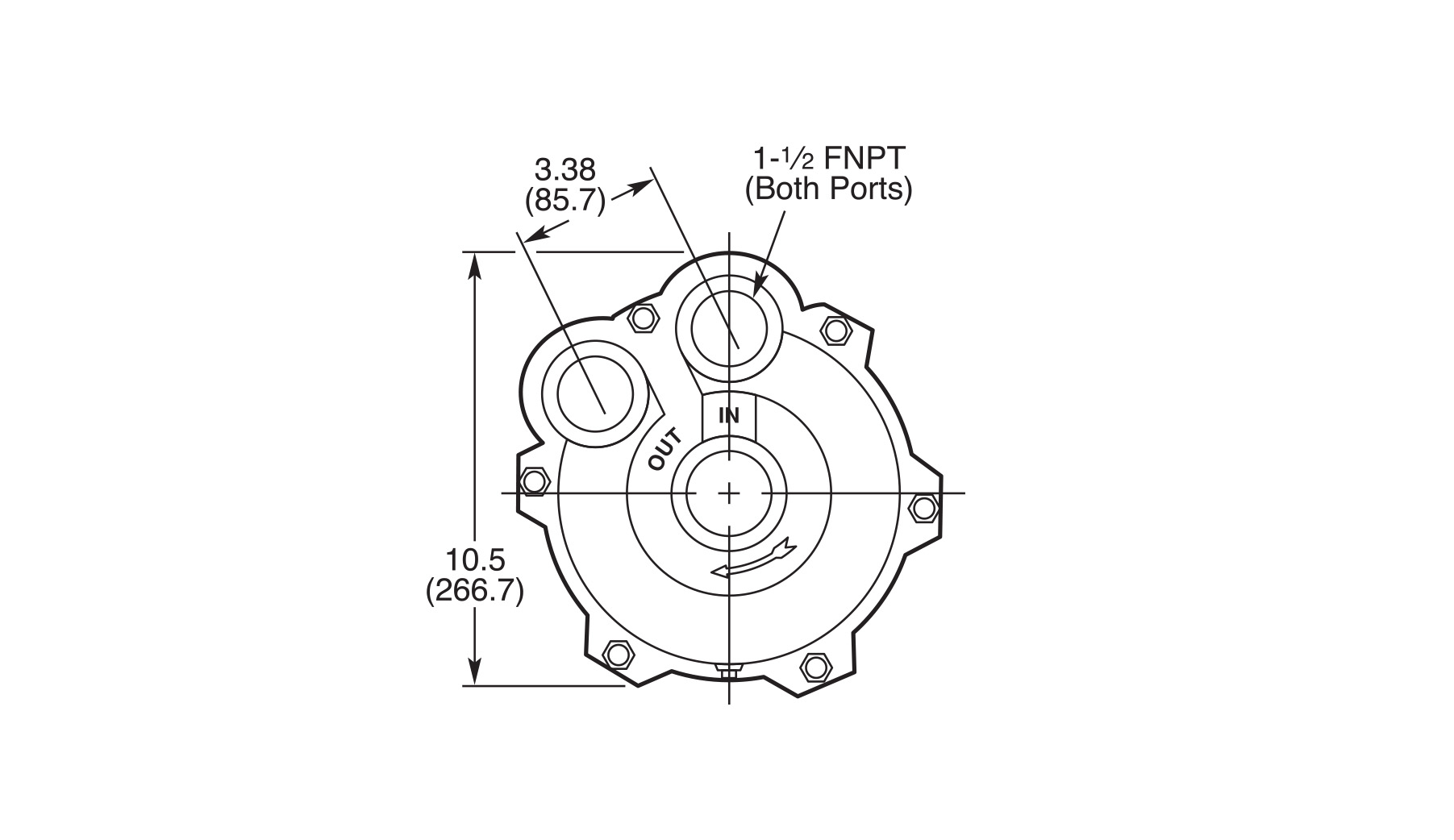

Inlet/Outlet Ports: 1 1/2 NPT (female)

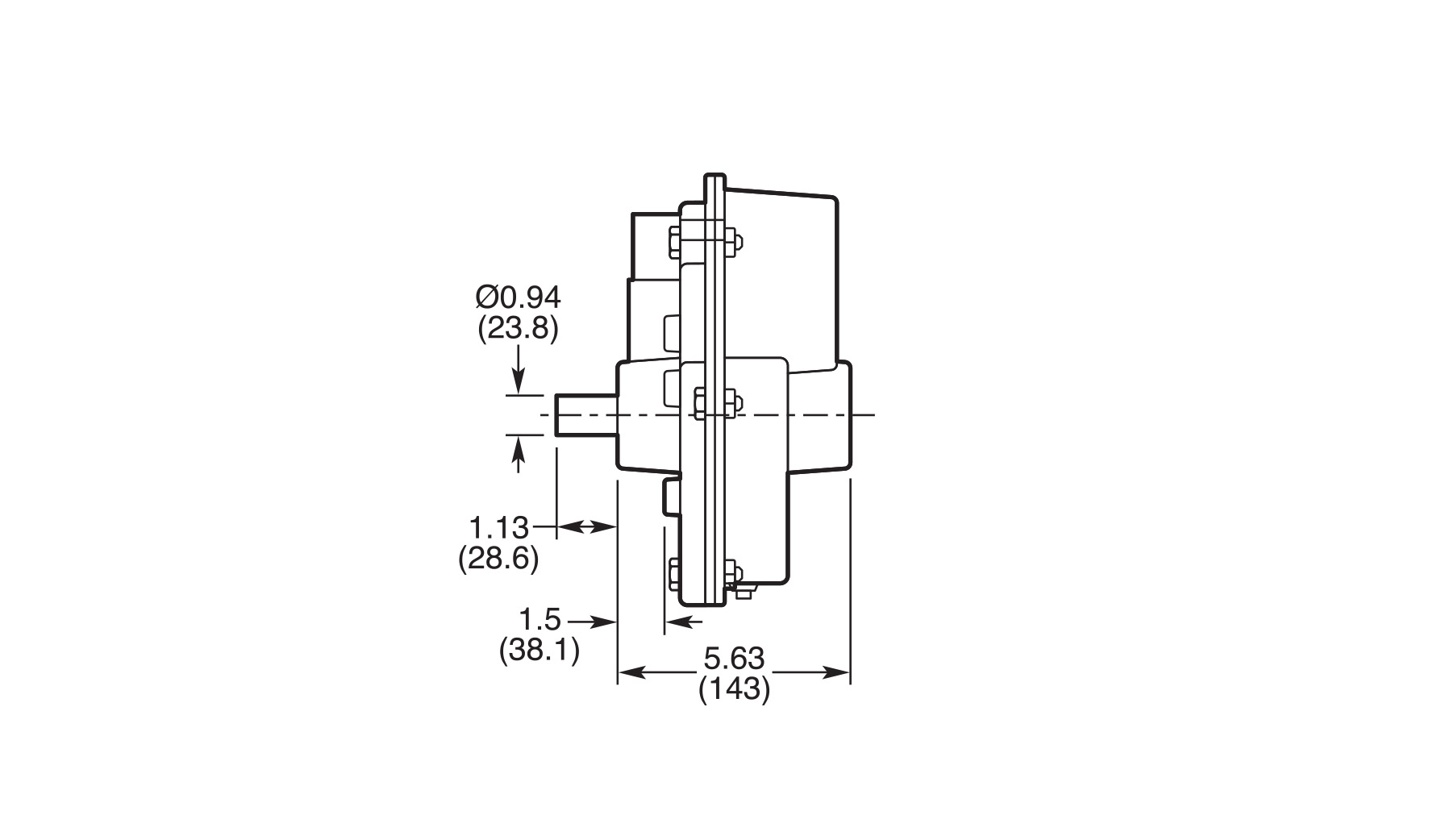

Shaft Diameter: 15/16” with 1/4” keyway
Shaft Rotation: CCW
Weight: 23 lbs.
Materials of Construction
Pump Housing: Cast Iron
Impeller: Nylon
Seals: Lip style or face seal (Viton)
Shaft: Stainless Steel
Turbo 90 Series Performance
| PSIG | 600 RPM | 800 RPM | 1000 RPM | 1200 RPM |
|---|---|---|---|---|
| 0 | 45 | 60 | 75 | 90 |
| 10 | 30 | 47 | 65 | 80 |
| 20 | 19 | 37 | 55 | 73 |
| 30 | 8 | 27 | 46 | 65 |
| 40 | 19 | 37 | 57 | |
| 50 | 11 | 30 | 49 | |
| 60 | 3 | 24 | 42 | |
| 70 | 18 | 35 | ||
| 80 | 12 | 31 | ||
| 90 | 6 | 25 | ||
| 100 | 20 |
Turbo 90 Repair Kits
Kit contains appropriate style seals, gasket, and instructions.

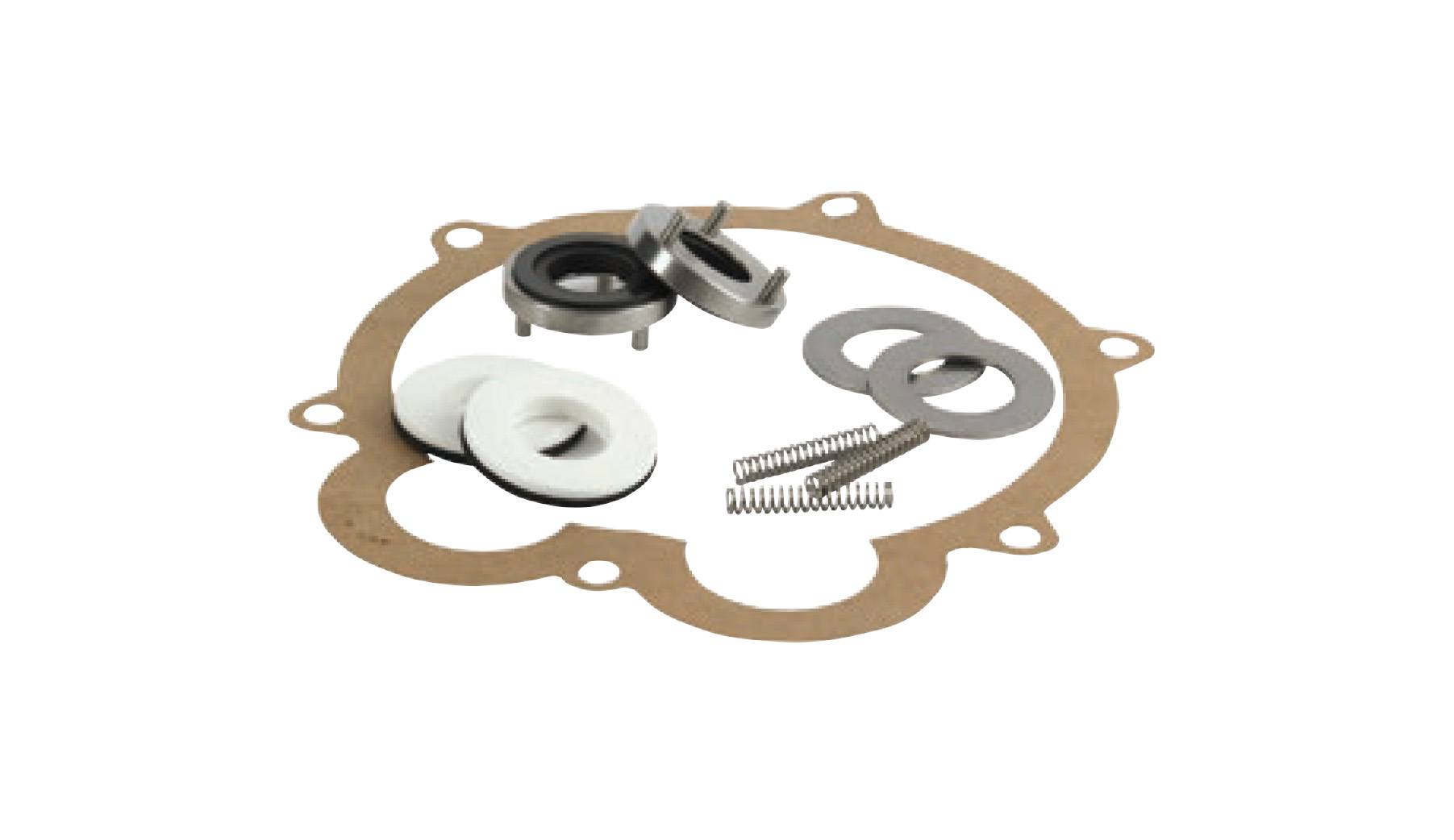

Turbo 90 Face Seals – for T90 26556-11 Part# 28455-1

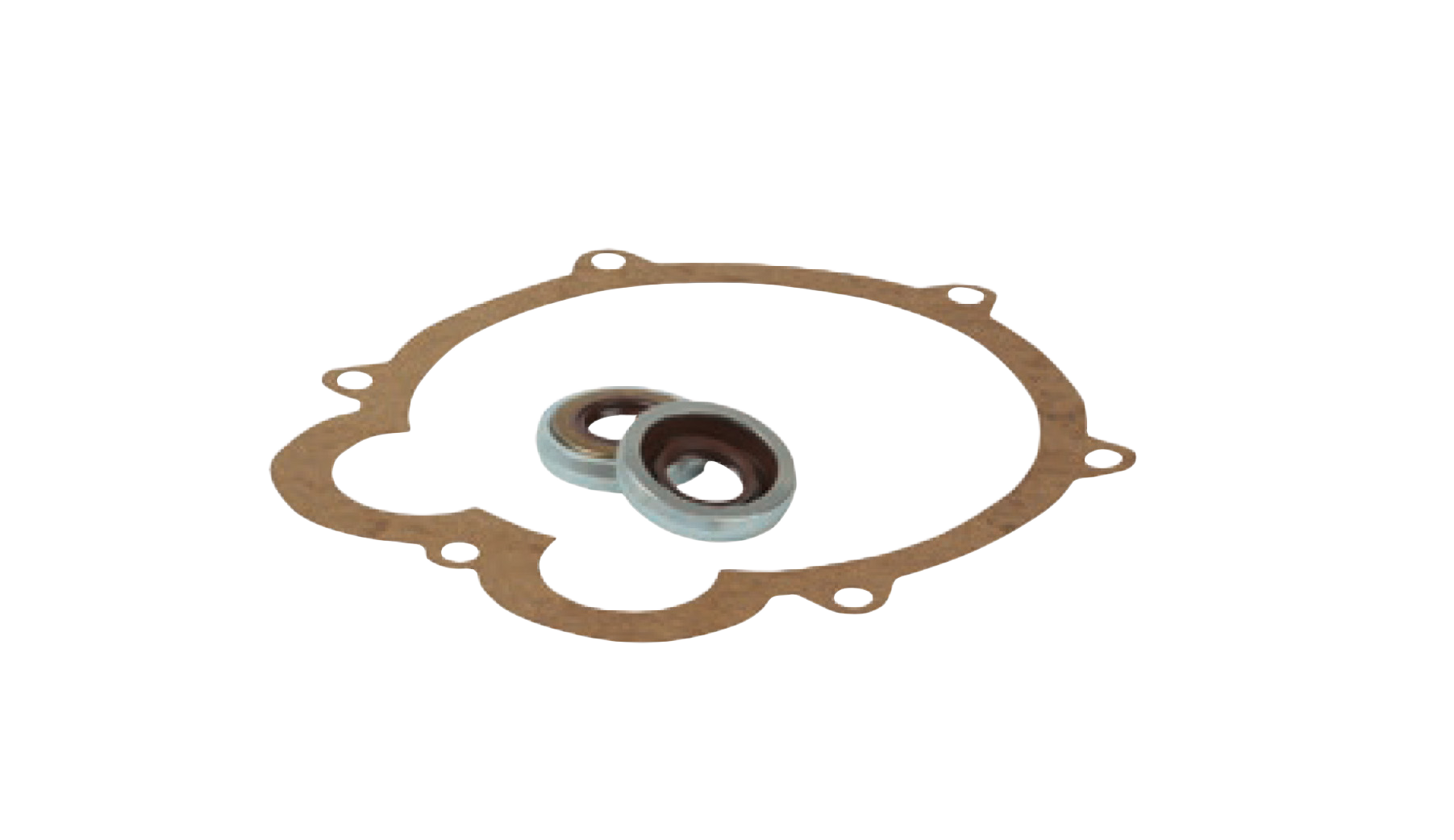

Turbo 90 Lip Seals – forT90 26556-4 Part# 28455-2
Accessories
Torque Bar and Chain – Required to anchor PTO-mounted Turbo 90 pump in order to keep pump from rotating with the shaft.

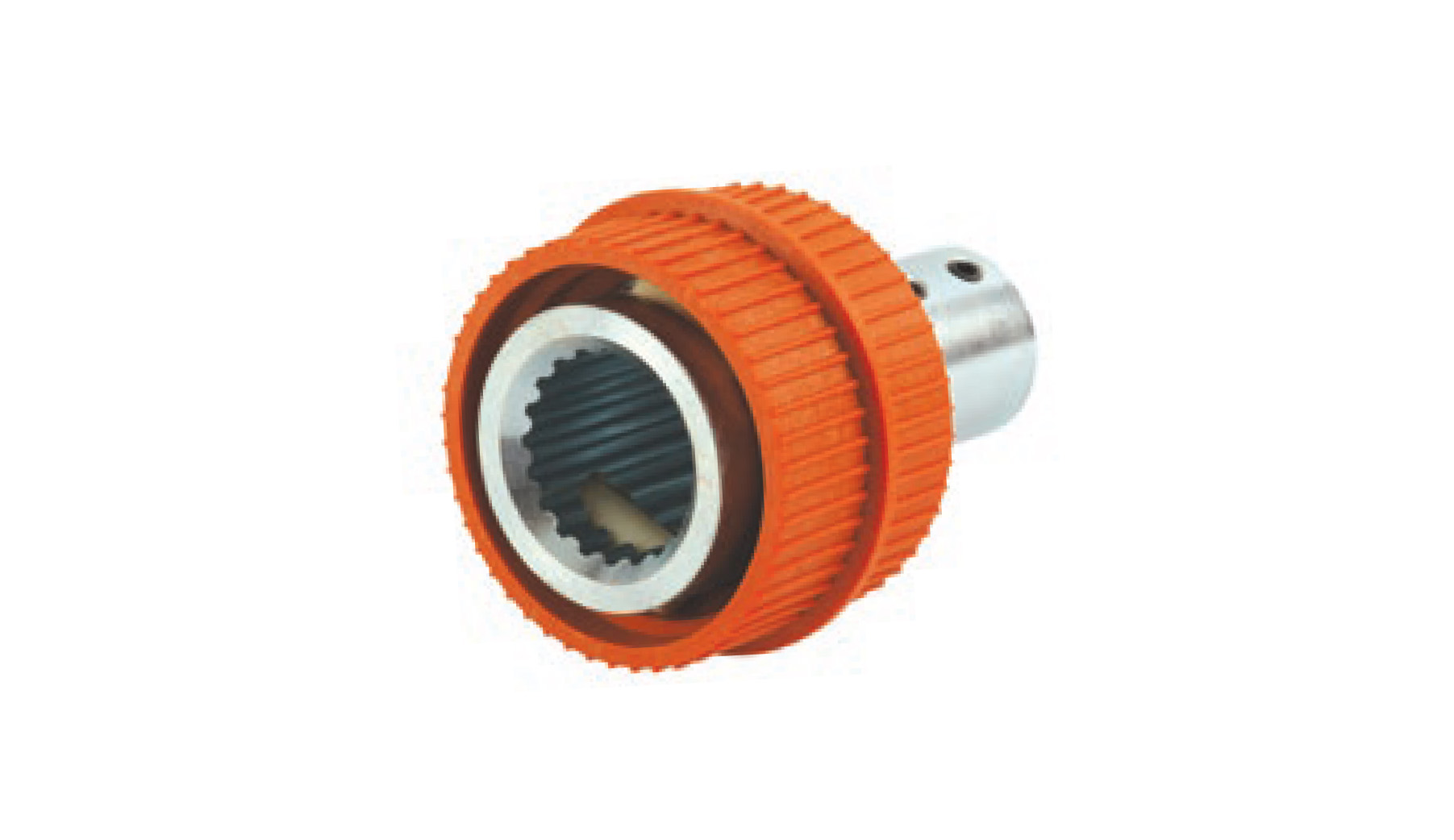

Couplers – These provide quick and simple on-off installation. Recommended couplers
for the Turbo 90 are couplers with part number:
90100 – For 1-3/8” diameter PTO shaft; 9-tooth; 540-1000RPM
90700 – For 1-3/8” diameter PTO shaft; 6-tooth; 540 RPM
90500 – For 1-3/8” diameter PTO shaft; 21 tooth; 1000RPM
90800 – For 1 3/4” diameter PTO shaft; 20 tooth; 1000RPM
*A 1000-RPM PTO coupler must be used. The Turbo-90 can be operated at lower speeds, but the capacity diminishes dramatically with speed – at 540 RPM the capacity is almost zero. A choice of four quick couplers is available.
